| Place of Origin: | china |
|---|---|
| Brand Name: | M&D |
| Certification: | CE ISO |

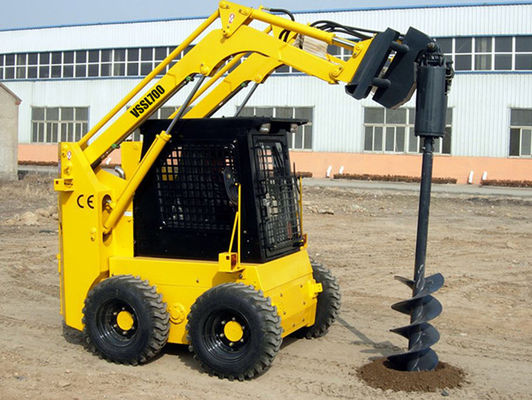

| Model Number: | VSSL-700 |
| Minimum Order Quantity: | 1set |
| Price: | negotiable |
| Packaging Details: | Moistureproof package HS CODE:8429510000 Overall dimensions(mm) 3345×1850×2040 2units/20GP |
| Delivery Time: | 15-20 days |
| Supply Ability: | 200 set per month |
| Color: | Customised | Bucket Capacity: | 0.5 M3 |
|---|---|---|---|
| Height At Maximum: | 3780mm | Wheelbase: | 1020mm |
| Height To Bucket Hinge Pin: | 3450mm | Track Width: | 1500mm |
| Dump Angle: | 45° | Tyre: | 12/16.5NHS |
| High Light: | forklift truck side loader,side lift forklift trucks |
||
Main Features
1. Compact structure, maneuverable movement suitable for narrow space operation
2. Open cabin with mechanical control system
3. Double accelerograph control
4. Multi-function with a wide range of attachments
5. Hydraulic break
Advantage
All daily maintenance can be completed when open the forward cover. The cabin can be turned rear in large-angle.
All instruments and operating buttons are within the reach of the operator.
CE certification keep high quality control.
Chinese XINCHAI engine famous in China,economic and easy get spare parts in your country. PERKINS engine is available.
enlarged water tank in order to heat faster.
International standard quick coupler fits various attachments in the world.
Italy Bondioli & Pavesi Multi-valve.
Italy FAST quick fitting and all hydraulic hose with sleeve protection.
Operators may enjoy the Proportional controlled pilot joystick by getting familiar with the machine quickly with less fatigue.
The cab gets lots of space and good view. It is in line with ROPS regulation.
US EATON hydraulic motor keep high power and long life.
US SAUER Traveling hydraulic system adopts closed loop circuit with features of compact structure, good maneuverability and lower heat emission.
When lifting the boom, the bucket automatically keeps levelling.
Parameters
| VSSL700 | |
| Rated operating capacity (kg) | 700 |
| Tipping load (kg) | 1400 |
| Bucket capacity (m3) | 0.36-0.45 |
| Operating weight (kg) | 3000 |
| Max. travel speed (km/h) | 12 |
| Hydraulic pump flow (L/min) | 62.5 |
| Fuel tank capacity (L) | 50 |
| Overall length (mm) | 3200 |
| Overall width (mm) | 1740 |
| Overall height (mm) | 2030 |
| Height at maximum extension (mm) | 3670 |
| Height to bucket hinge pin (mm) | 2900 |
| Width with bucket (mm) | 1740 |
| Track width (mm) | 1450 |
| Wheelbase (mm) | 991 |
| Ground clearance (mm) | 185 |
| Dump angle (°) | 40 |
| Dumping height (mm) | 2310 |
| Engine model | XINCHAI 490 |
| Net power (hp/ rpm) | 50/2650 |
| Displacement (L) | 2.54 |
Ø Open and transparent one-stop centralized procurement;
Ø International standard purchase supply process management;
Ø Expert technical solution for production process;
Ø Display, storage and after-sales service ;
Ø International financing and insurance.
Our Manual Control Type: main pump and travel motor adopt USA EATON Brand, Gear pump and multiway valve adopt ITALY BONDIOLI brand
Hydraulic Control Type: main pump is ITALY BONDIOLI brand,Motor is ITALY SAI
Multiway valve and Pilot handle use ITALY HYDQD
Mounts connection is the same as ,Hydraulic quick-change coupler is the same as , and is suitable to our skid steer loader attachments as well as foreign attachments
Features:
1) World famous hydraulics, precision processing equipment, high quality quick coupler and with different attachments available
2) Attachments: 4 in 1 bucket, tooth bucket, pallet fork grapple, auger, hammer, fork,excavator,angle blade,mixer, grass cutter ,hedge trimmer,drum scraper,etc.
3) Produced according to CE standard,with EPA engine
4) Cab (open and closed cab), colors as per clients' request
| Item | Description | Item | description |
| Rated operating capacity(kg) | 850 | Hinge pin height (mm) | 3100 |
| Tipping load (kg) | 1700 | Total height (mm) | 2160 |
| Bucket capacity(m3) | 0.5 | Length with bucket (mm) | 3490 |
| Hydraulic pump flow (L/min) | 75 | Length without bucket(mm) | 2750 |
| Engine power (hp) | 60 | Width with bucket (mm) | 1880 |
| Weight(kg) | 3300 | Track width (mm) | 1500 |
| Max travel speed (km/h) | 12 | Wheelbase (mm) | 991 |
| Grade ability | 20 | Ground clearance (mm) | 205 |
| Tire | 12-16.5 | Dumping angle | 40 |
| Fuel/hyd oil capacity (L) | 80/80 | Dumping height (mm) | 2400 |
| Height at maximum extension | 4000 | Maximum reach (mm) | 750 |
JC70 skid steer loader 1000kgs
Specifications:
Rated operating capacity(kg) 1000
Tipping load(kg) 2000
Bucket capacity(m3) 0.5
Operationg weight(kg) 3400
Max. travel speed(km/h) 12
Hydraulic pump flow(L/min) 75
Fuel tank capacity(L) 80
Tires 12/16.5NHS
Overall dimensions(mm) 3345×1850×2040
Dimensions:
Height at maximum extension(mm) 3780
Height to bucket hinge pin(mm) 3450
Width with bucket(mm) 1900
Track width(mm) 1500
Wheelbase(mm) 1020
Ground clearance(mm) 260
Dump angle 45°
Dumping height(mm) 2900
Rollback at ground 26°
Angle of departure 20°
Engine:
Maker/Model: Deutz D226B-4
Net power:80hp/2500rpm
Type:4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine
Displacement(L) 4.2
Standard:
Open-type operator cab
Hand control system(Mechanical type)
Standard bucket
Auxiliary hydraulic couplers
Optional:
Enclosed operator cab with A/C
Cab fitted with a heater as standard
Hydraulic joystick controls
2-speed transmission system
Attachments:
Backhoe,Breaker,Angle blade,Auger,Sweeper,Pallet fork,
Combinition bucket,Mower,Asphalt cutter,and More
