Warehouse Port 2440mm Track Aircraft Tow Tractor

Basic Information
Place of Origin: china
Brand Name: M&D
Certification: CE ISO
Model Number: TD-160
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: export standard packing
Delivery Time: 15-20 days
Payment Terms: L/C, T/T
Supply Ability: 200 set per month
Detail Information
Product Name: Aircraft Tow Tractors With CE Conformity IATA Standard For Airport Self Weight: 68000kgs
Dimensions: 9660x2960x2300mm Ground Clearance: 200mm
Track: 2440mm Wheelbase: 3440mm
High Light:

2440mm Track Aircraft Tow Tractor


Logistics Aircraft Tow Tractor


Port Aircraft Tow Tractor

Product Description

Aircraft Tow Tractors With CE Conformity IATA Standard For Airport

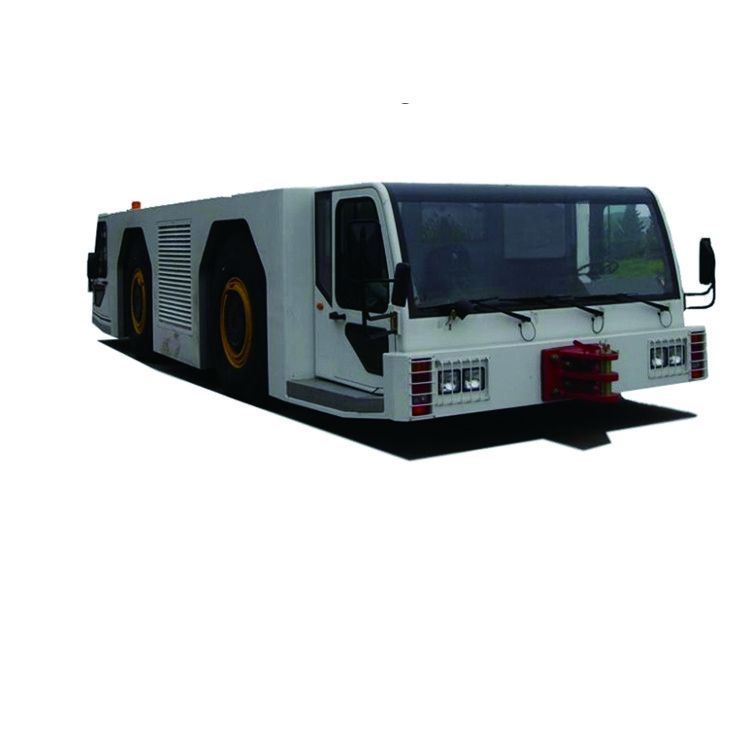

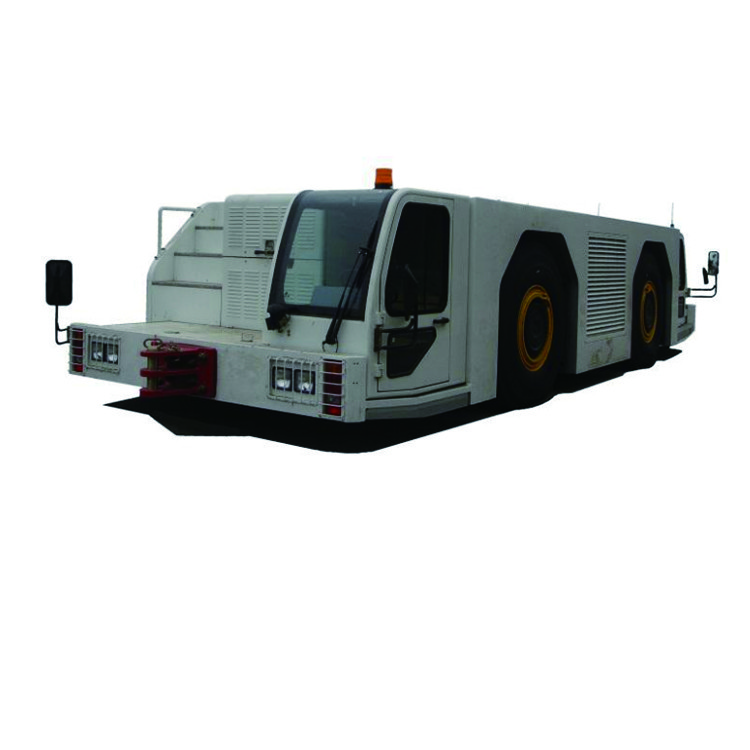

The WGQY70B Conventional Aircraft Tow Tractor, as one model of series conventional
aircraft tow tractors, this tractor meets the requirements of all aircraft up to and including A380.
Features a compact, low profile design, power-shift transmission drive, and spacious cabin. It can be
used for gate push back as well as maintenance towing. This unit can be counterweighted to 70 tons
with a drawbar pull of 485 KN. The tractor features four (4) wheel drives and four (4) wheels steering
for safe and efficient operation. The front driving station is hydraulically elevating and is ergonomically
designed for operator comfort, visibility and safety . There is a fixed rear one-man cabin with full
Safety Devices
 Engine over speed, engine coolant high temperature, engine oil low pressure, high transmission
oil temperature, low intake air pressure protection.
 Emergency steering system.
 Emergency brake system: when engine failure and tractor being towed, brake still can be applied
and released.
 Hand brake interlock with driving function.
 Emergency electrical pump for emergency steering.
 Emergency manual pump for emergency release parking brake
Self weight kg 60000-68000
Max Driving speed km/h 30
Ground clearance mm 200
Track mm 2440
Wheelbase mm 3400
Turning radius mm 10500
Max draw ball pull mm 1880
Wheelbase kn 485
Electrical system v 24dc
Ambient temperature
-25~ +60
Model   WGQY70B


Application Area:




4.Distribution Center




Warehouse Port 2440mm Track Aircraft Tow Tractor 0


Why choose us

1. We supply high quality products with reasonable price.
2. We are the professional manufacturer;
3. Advanced Production machine;
4. Strict quality control system;
5. Ten people research&develop team;
6. We have professional sales team;
7. Experienced exporting for all over the world;
8. We supply one-step solution service.


Delivery Time

3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.


Our Services

Honest & Faithful: It is our working style and base of which helps us to build up long term and trusted relation shipment with our customers, staffs and partners.

Quality: We pursue high quality of product and service. We are serious-minded and cautious for any project and tasks and try our best to be perfect in leading area in this industry.

Efficiency: Higher efficiency is the road of survival. It’s our victorious talisman by enhancing communication and quickly responding to resolve your difficulties and problems. We deny all delaying and making excuse.

Customers first : We provide excellent compensation, benefit with healthy and comfortable office environment. As to the customers, It’s our happy staffs who will try their best to bring you great service experience

We are adhere to business concept of “ Faith, Quality, Efficiency”, Try to be professional. We strongly believe that high quality product, reasonable price and faithful service will make you satisfies.


Company Information

Shanghai M.Touch Road Mechanical Equipment Co,Ltd, established in Mar of year 2012, Its headquarter located in Nanhui industry zone , Pudong , Shanghai China, is a professional company by providing kinds of products and services for sets of forklift and fittings, electronic moving equipment, storage equipment and engineering and piping projects and accessories. We also provide high quality and just in response services in leasing and repair & maintenance of domestic market.

After 7 years of hard work ,The company keeps growing, conforms to market demand, expands business scope, and lays a good foundation for future development.In 2018, a new engineering machinery and equipment manufacturing enterprise leading the industry was established: Manly forklift truck (Shanghai) Co., Ltd.




Why choose us?

M&D is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.

What is the product range of our factory?

M&D is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders, forklift trucks,Warehousing equipment, port equipment and related attachments. We can also customize non-standard products according to customer's requirements.

What certificates do you have?

All products meet with the ISO 9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.

How about our delivery time?

Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.

Can we provide OEM service?

M&D can provide customized products according to customers' requirements, both OEM and ODM are acceptable.

What payment terms can we accept?

Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
