| Place of Origin: | Made in China |
|---|---|
| Brand Name: | M&D |
| Certification: | CE,ISO |
| Model Number: | CBD50 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiated |
| Packaging Details: | Export Standard Package |
| Delivery Time: | 3-20Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500Units/Month |
| Product Name: | CBD50 5Ton With Max Lifting Height 230mm Mini Electric Tow Tractor | Power Type: | Full Electric |
|---|---|---|---|
| Rated Capacity: | 5000kgs | Max Lifting Height: | 230mm |
| Load Center: | 600mm | Wheel Type: | Polyurethane |
| Fork Size: | 1200x215mm | Driving Controlling Type: | AC |
| High Light: | Lifting 230mm Electric Tow Tractor,5T Electric Tow Tractor,1200x215mm Fork Electric Tow Tractor |
||

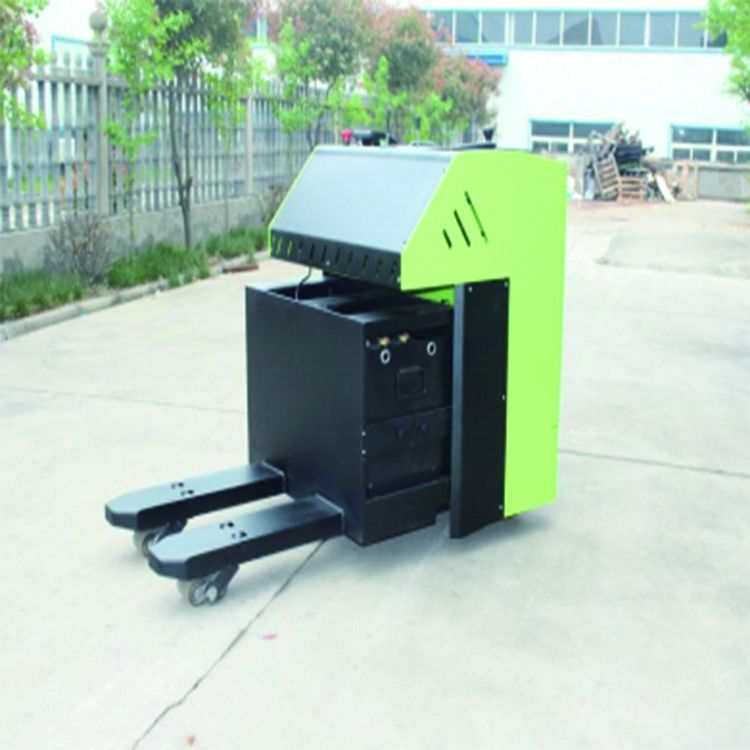

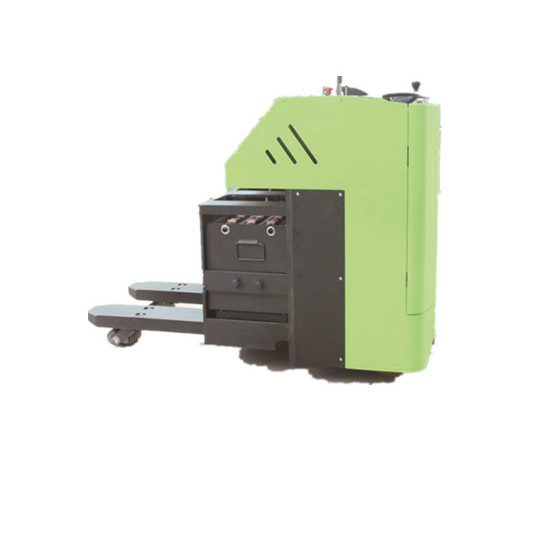

CBD50 5Ton With Max Lifting Height 230mm Mini Electric Tow Tractor
High-power batteries, long range and battery life electromagnetic brake, power automatic braking, parking will not slip slide.
EPS steering energy reduction 20%, accurate operation, light and flexible steering, reduce driver fatigue, significantly improve productivity.
Maintenance-free high power ac drive system, provide reliable power driving power on pedal foot switch, control the vehicle running, only stepped on the pedal switch, the power of the vehicle can run, whereas the car stops running, the design improves the vehicle's safety performance.
| Operation Type | Stand up | |
| Model No | CBD50 | |
| Power Type | Full Electirc | |
| Rated Capacity | kg | 5000 |
| Max Lifting Height | H(mm) | 230 |
| Load Center | C(mm) | 600 |
| Wheel Type | Polyurethane | |
| Fork Size | mm | 1200*215 |
| Forks Spread | mm | 720 |
| Fork Clearance from the Ground | H1(mm) | 105 |
| Overall Length Pedal Closed | L(mm) | 2215 |
| Overall Width | S(mm) | 1090 |
| Max Walking Speed | Km/h | 4/5 |
| Grade Ability | % | 6 |
| Drive Wheel | mm | 310*125 |
| Wheel Front | mm | 80*110 |
| Balance Wheel | mm | 150*50 |
| Battery capadcity | V/ah | 24/320 |
| Driving Motor | kw | 3 |
| Lifting Motor | kw | 3 |
| Brake | Electromagnetic | |
| Drive Controlling Type | AC | |
| Walking Adjustable Type | Holzer type accelerator |
Standard Export Package
Shanghai M.Touch Road Mechanical Equipment Co,Ltd, established in Mar of year 2012, Its headquarter located in Nanhui industry zone , Pudong , Shanghai China, is a professional company by providing kinds of products and services for sets of forklift and fittings, electronic moving equipment, storage equipment and engineering and piping projects and accessories. We also provide high quality and just in response services in leasing and repair & maintenance of domestic market.
Our main products: 1-48T internal combustion forklift, 0.5-12T electric AC forklift, 2-7T LPG forklift, 1-2.5T forward forklift, 2-10T tractor, 0.5-2T electric stacker, 1-5T electric truck, narrow-track forklift, picking truck, various lifting platforms, various kinds of hand animal material handling trucks, 0.8-6T wheel loader, excavator, bulldozer Tiller, slipper, frontal crane, container crane, aircraft tractor, floor washer, and other related logistics equipment.
How Can I Pay My Order?
You can pay by L/C,T/T,D/A,D/P and credit card.
What can you do if the machines meet problem?
We provide lifelong technical support.You can send us the problem video and our engineer will give the advice.We can give the component for free in defects liability period.We can also send engineers abroad but you may need pay the airfare and other fees.
How can you control the quality and delivery?
We use good material and arrange quality inspection to ensure the quality.
The delivery time depends on your order quantity.
What certificates do you have?
All products meet with the ISO 9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
Export Standard Package
Package Type:Container or bulk
| Quantity(Unit) | 1 - 1 | >1 |
| Est. Time(days) | 15days | To be negotiated |
