| Place of Origin: | Made in China |
|---|---|
| Brand Name: | M&D |
| Certification: | CE,ISO |
| Model Number: | CBD70 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiated |
| Packaging Details: | Export Standard Package |
| Delivery Time: | 3-20Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500Units/Month |
| Product Name: | 7000kgs Mini Stand Up Electric Walking Tow Tractor Accept Customer Demanded | Power Type: | Full Electric |
|---|---|---|---|
| Rated Capacity: | 7000kgs | Max Lifting Height: | 260mm |
| Load Center: | 600mm | Wheel Type: | Polyurethane |
| Fork Size: | 1200x250mm | Driving Controlling Type: | AC |
| High Light: | 7000kgs Electric Forklift Truck,Lifting 260mm Electric Forklift Truck,600mm Load Center Tow Tractor |
||

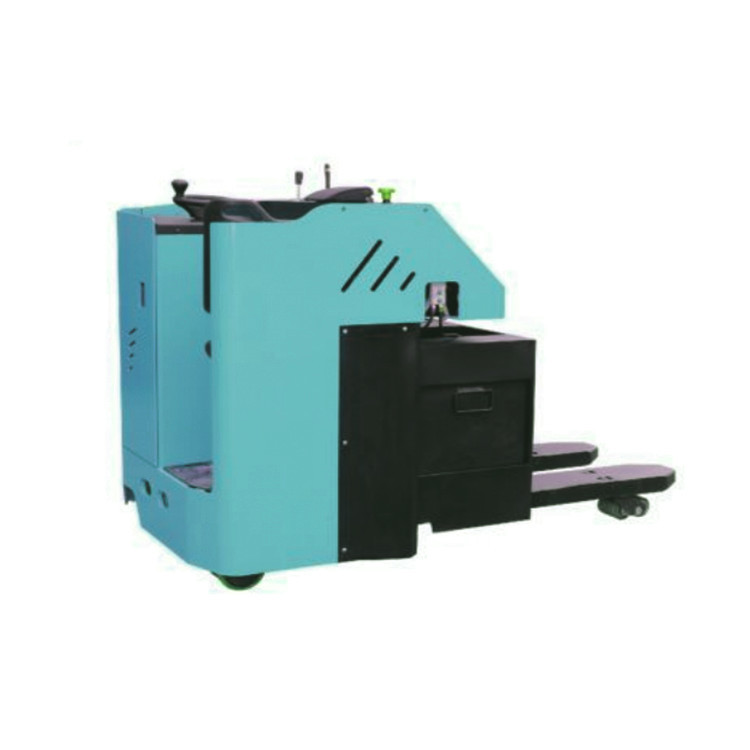

7000kgs Mini Stand Up Electric Walking Tow Tractor Accept Customer Demanded
EPS steering energy reduction 20%, accurate operation, light and flexible steering, reduce driver fatigue, significantly improve productivity.
Maintenance-free high power ac drive system, provide reliable power driving power on pedal foot switch, control the vehicle running, only stepped on the pedal switch, the power of the vehicle can run, whereas the car stops running, the design improves the vehicle's safety performance.
| Operation Type | Stand up | |
| Model No | CBD70 | |
| Power Type | Full Electirc | |
| Rated Capacity | kg | 7000 |
| Max Lifting Height | H(mm) | 260 |
| Load Center | C(mm) | 600 |
| Wheel Type | Polyurethane | |
| Fork Size | mm | 1200*250 |
| Forks Spread | mm | 720 |
| Fork Clearance from the Ground | H1(mm) | 140 |
| Overall Length Pedal Closed | L(mm) | 2370 |
| Overall Width | S(mm) | 1090 |
| Max Walking Speed | Km/h | 3/4 |
| Grade Ability | % | 3 |
| Drive Wheel | mm | 343*114 |
| Wheel Front | mm | 100*120 |
| Balance Wheel | mm | 150*50 |
| Battery capadcity | V/ah | 48/300 |
| Driving Motor | kw | 4.5 |
| Lifting Motor | kw | 6.3 |
| Brake | Electromagnetic | |
| Drive Controlling Type | AC | |
| Walking Adjustable Type |
Holzer type accelerator
|
Standard Export Package
M&D Company’s main products: 1-48T internal combustion forklift, 0.5-12T electric AC forklift, 2-7T LPG forklift, 1-2.5T forward forklift, 2-10T tractor, 0.5-2T electric stacker, 1-5T electric truck, narrow-track forklift, picking truck, various lifting platforms, various kinds of hand animal material handling trucks, 0.8-6T wheel loader, excavator, bulldozer Tiller, slipper, frontal crane, container crane, aircraft tractor, floor washer, and other related logistics equipment.
M&D Company is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive after-services. All the products purchased from M&D enjoy one year or 2000 hours (which occurs first) warranty. During the warranty period, if there is any part broken because of quality problem (except easy-damaged parts), the defective parts will be repaired or replaced free of charges.
44
What is the product range of our factory?
M&D is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders, forklift trucks,Warehousing equipment, port equipment and related attachments. We can also customize non-standard products according to customer's requirements.
What certificates do you have?
All products meet with the ISO 9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
Can we provide OEM service?
M&D can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
