| Place of Origin: | Made in China |
|---|---|
| Brand Name: | M&D |
| Certification: | CE,ISO |
| Model Number: | DQ1004 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiated |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 3-20days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500Units/Month |
| Product Name: | Agriculture Compact Diesel Farm Tractors 100Hp 4WD Gear Drive | Type: | Wheel Tractor |
|---|---|---|---|
| Condition: | New | BY Wheel: | 4WD |
| Model: | DQ1004 | Wheel Base: | 2195mm |
| Color: | Customer Requirements | Drive Type: | Gear Drive |
| High Light: | small diesel tractor,agriculture mini tractor,100Hp Compact Diesel Tractor |
||

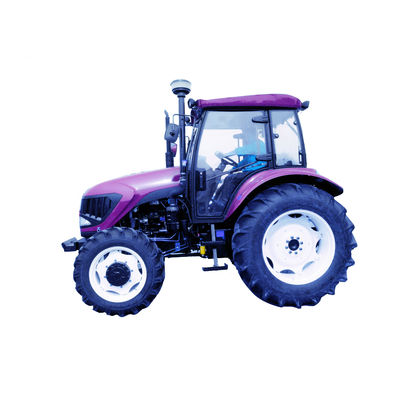

Agriculture Compact Diesel Farm Tractors 100Hp 4WD Gear Drive
Agriculture Compact Diesel Farm Tractors 100Hp 4WD Gear Drive which series products is a middle and small hp 4-wheel drive tractor directly connected with its engine specially used in mountain areas and muddy roads. It has the characteristics of high transmission efficiency, low tremble, high traction, high adaptability and easy start. Jaw type differential lock can improve the pass-ability. Hydraulic output interface can make direct connection with the dump trailer. This series tractor can have many different configurations according to customer’s demands: single stage clutch or two stage clutch, (3+1) ×2 six shifts or (4+1)×2 eight shifts where the creeping shift can be selected, one or two standard PTO rev., fixed or adjusted tread, back catalogue “0” or “1” suspensions, mechanical steering or hydraulic steering and so on.
Tractor product advantages and characteristics
1. This series product is a middle and small hp tractor ( 2WD and 4WD ).
2. It is matched high-power engine which has characteristics of large power output, easy start, advanced economic index, reliable performance, low noise and good environmental .
3. Different configurations according customer's demends: single clutch or two stage clutch,(3+1)x2 six shifts or (4+1)x2 eight shift in which the creeping .
4. The beautiful appearance of the tractor adopts international streamline.
5. Hydraulic steering system is equipped for quick and convenient operations. Impact transmission system, large speed range and reasonable shifts can meet different tasks.
6. It is equipped with fully sealed brake differential lock and post PTO so it can be connected with different farm implements easily and finish different field tasks, fixed tasks and transportation efficiently.
| Model | DQ1004 |
| Drive type | 4x4 |
| Engine | |
| Engine model | LR4M3Z-23 |
| Capacity of fuel tank(L) | 150 |
| Rated speed (r/min) | 2300 |
| Engine power (kw) | 73.5 |
| Lowest fuel consumption (g/kw·h) | ≤242 |
| Transmission | |
| Clutch | Dry,dual-stage type |
| PTO Speed(rpm) | 540/1000 or 760/1000(optional) |
| Gearshift | 8F+4R/16F+8R(optional)/8F+8R(optional) |
| Hydraulic system | |
| Hydraulic output valve | 2-Way (optional) |
| Three point linkage | |
| Category of 3-point link | Rear,Cagetory II |
| Lifting capacity(at point of 610mm)KN 610mm |
>16 |
| Technical parameter | |
| Dimension LxWxH mm | 3700x2250x2700 |
| Wheel base(mm) | 2195 |
| Track base(mm) front wheel | 1610 |
| Track base(mm) rear wheel | 1620-2020(usual 1620) |
| The smallest clearance(mm) | 379 |
| Front tyre | 11.2-24 |
| Rear tyre | 16.9-34/18.4-30(optional) |
| NO. | ITEM |
| 1 | Air brake |
| 2 | OECD safty frame |
| 3 | Canopy |
| 4 | Cabin |
| 5 | Warm wind |
| 6 | A/C |
| 7 | Dual forced lifting |
| 8 | Multi-way valve(four port) |
| 9 | front balance weight |
| 10 | rear balance weight |
| 11 | Paddy tires |
| 12 | Hour meter |
The following parts are available for selection. If you need other special parts,please consult with us in advance.
Based on the above is the basic style, we can make customized style meet customers' requirements.
Standard Export Package
3 Units Per 1*40'Fcl
M&D Company is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive after-services. All the products purchased from M&D enjoy one year or 2000 hours (which occurs first) warranty. During the warranty period, if there is any part broken because of quality problem (except easy-damaged parts), the defective parts will be repaired or replaced free of charges.
The Group mainly deals in forklift trucks, material handling, storage and transportation equipment, lifting equipment, port and wharf products, etc. Our products have passed CE, GS, UL, ISO 9001 and other international quality system certification. Products are widely used in construction sites, industrial and mining enterprises, stations, wharfs, power, postal, urban construction, gardening, and other fields, involving a number of industries.Facing the fierce market competition, the company establishes the global brand strategy and produces more safe, reliable and stable product quality for you. n line with the business philosophy of "pioneering and enterprising" and "pragmatic, dedicated and innovative", the company insists on taking high and new technology as the leading factor, taking market demand as the guide, aiming at continuously improving the scientific and technological content of products and developing new products, inheriting historical responsibilities, exploring the future, and striving for and perpetuating the development of national industry. Never stop! Win the world with honesty!
Honest & Faithful: It is our working style and base of which helps us to build up long term and trusted relation shipment with our customers, staffs and partners.
Quality: We pursue high quality of product and service. We are serious-minded and cautious for any project and tasks and try our best to be perfect in leading area in this industry.
Efficiency: Higher efficiency is the road of survival. It’s our victorious talisman by enhancing communication and quickly responding to resolve your difficulties and problems. We deny all delaying and making excuse.
Customers first : We provide excellent compensation, benefit with healthy and comfortable office environment. As to the customers, It’s our happy staffs who will try their best to bring you great service experience
We are adhere to business concept of “ Faith, Quality, Efficiency”, Try to be professional. We strongly believe that high quality product, reasonable price and faithful service will make you satisfies
