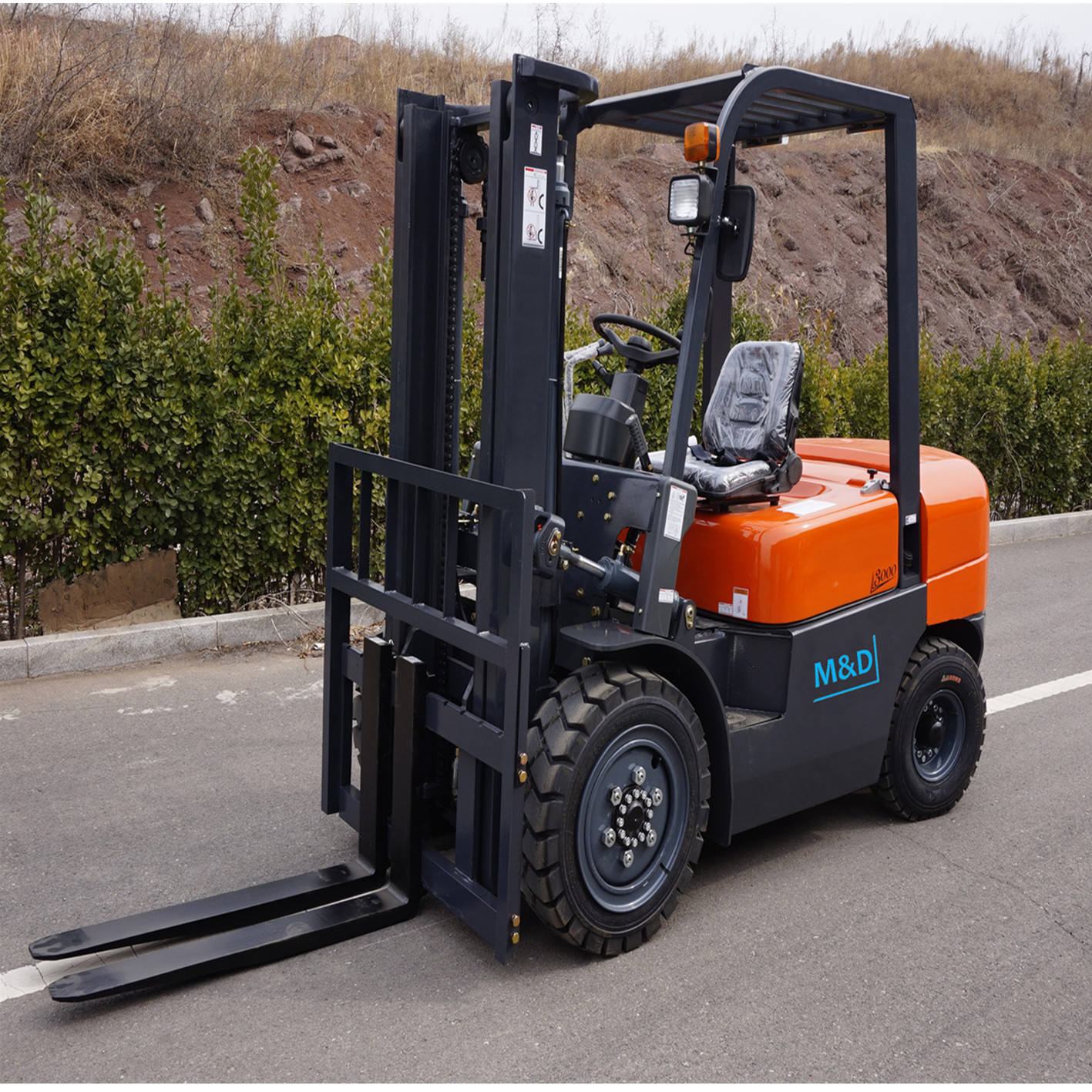

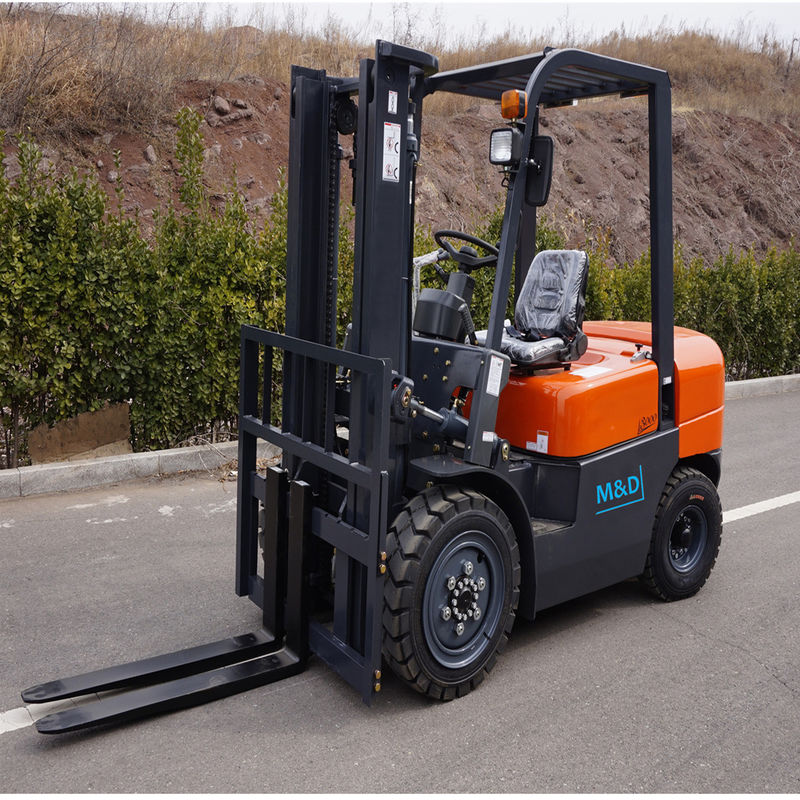

Customized Color Diesel Engine Forklift 3.5 Ton With 3000mm Lift Height

Basic Information
Place of Origin: China
Brand Name: M&D
Certification: CE,ISO
Model Number: FD35
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Package.5 Units Per 1*20', 7 Units Per 1*40'HC
Delivery Time: 15-20Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Units per month
Detail Information
Name: FD35 Diesel Forklift 3.5Ton Truck With Diesel Engine Bargain Price Capacity: 3500kg
Power Souce: Diesel Engine Load Center: 500mm
Fork Length: 1070mm/1220mm Lifting Height: 3-7m
Color: Customized Color Lift Height: 3000mm
High Light:

lifted diesel trucks

,

four wheel drive forklift


Product Description

FD35 Diesel Forklift 3.5Ton Truck With Diesel Engine Bargain Price



Product Description



Standard Configuration of Diesel forklift

1.Chinese Engine
2. Hydraulic / Automatic Transmission
3. Duplex Mast Lifting Height 3000mm
4. Pneumatic Tires
5. 1070mm/1220mm Fork Length

Optional Equipments
1.Janpan engine ISUZU or Mitsubishi
2.Lifting Height 3m-7m
3.Full-free Duplex or Triplex Mast
4.Side Shift, Solid Tires, Suspension Seat, fork positiner .
5.Driver's Cabin, Customized Color, air-conditioner, etc.
6.Attachments :paper roll clamp,bale clamp ,rotating clamp ect.



Features Manufacturer     M&D
Model Power shift T/M FD35T
Manual shift T/M FD35C
Load capacity   kg 3500
Load center   mm 500
Power unit     Diesel
Operator type     Driver/seat
Tire type     Pneumatic
Wheel Front/rear   ‘2/2
Dimension Max. lifting height   mm 3000
Free lift   mm 150
Fork size L*W*T mm 1070*125*50
Tilt range Mast forward/backward deg 6/12
Overall length(without fork)   mm 2760
Total width   mm 1285
Mast height (fork lowering)   mm 2075
Overall height fork raised With backrest mm 4250
Height to head guard   mm 2140
Turning raduis(outside)   mm 2495
Front face of fork to front axle   mm 485
Min. right angle stacking aisle   mm 2975
without load length&clearence
Performance Speed Max Travelling full/no load km/h 18/19.5
Lifting full/no load mm/s 450/500
Lowering full/no load mm/s 450/420
Max.drawbar pull Power shift T/M full/no load kg 2200/1000
Manual shift T/M full/no load kg 2200/1000
Gradeability at 1.6km/h Power shift T/M full/no load % 18/20
Manual shift T/M full/no load % 18/20
Weight Truck weight   kg 4780
Weight distribution Full load kg 7380/900
front/rear
No load kg 1820/2960
front/rear
Frame Tires Number front/rear 2/2
Model front axle 28x9-15-12PR
rear axle 6.50-10-10PR
Wheelbase   mm 1700
Tread Front/rear mm 1060/970
Ground clearence At lowest point(mast) mm 120
Frame mm 135
Brake Service brake   Hydraulic-foot pedal
Parking brake   Mechanical-hand lever
Engine Battery Voltage/capacity V/AH 12/80
Engine Model   ISUZU 4JG2
Rated power kw/rpm 44.8/2450
Rated torque N.m/rpm 186/1800
Number of cylinders   4
Placement L 3.059
Fuel tank capacity L 70
Transmission Speed forward/backward Power shift T/M Manual shift T/M 1-1 power shift T/M 2-2 manual shift T/M
Operating pressure Hydraulic system pressure kg/cm² 180

 Customized Color Diesel Engine Forklift 3.5 Ton With 3000mm Lift Height 0
