|Color:||Customised||Wheel Type:||PU,Doulbe Front Whee|
pallet jack truck,
warehouse pallet trucks
|Capacity:||2000kg||Lowered Fork Height:||75mm|
|Lifting Height:||190mm||Height Of Handleless:||401.5mm|
|Width Overall Forks:||320/390/406mm||Steering Wheel:||160mm|
|Fork Wheel:||70mm||Service Weight:||65kg|

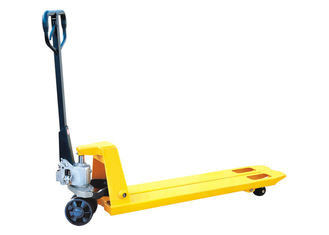

Model: Super narrow hand pallet truck BFZ
Lowered fork height: 75mm
Total lift height: 190mm
Height of handleless: 401.5mm
Width overall forks: 320/390/406mm
Steering wheel: 160mm
Fork wheel: 70mm
Service weight: 65kg
|Lowered fork height||mm||75|
|Total lift height||mm||190|
|Height of handleless||mm||401.5|
|Width overall forks||mm||320/390/406|
Hand pallet truck also known as manual pallet truck, hand pallet truck when use the carrying goods fork into the tray hole, by the ability to drive hydraulic system to realize the pallet load lifting and falling, and pulled by human complete handling operations.
It is the simplest and most effective tray in the transport, the most common type of loading and unloading,handling tools,widely used in logistics,warehouses, factories, hospitals, schools, shopping malls, airports, stadiums, station, airport and so on
Brand New stainless steel hand pallet truck of superior quality and competitive price
We used 304 stainless steel totally except wheels.
World class quality
Rubber coated handle comfortable even under extreme temperature conditions.
Fully sealed galvanized hydraulic unit housing.
Single valve cartridge for easy maintenance.
Powder coated chassis made of high grade steel.
Lead-in and lead-out rollers reduce damage to pallets.
-Easy handling & easy lifting.
-Baked enamel Coating.
-With an overload relief value to avoid misuse due to over Loading.
-Steer and fork wheels are made by steel and covered by Polyurethane.
|Min. Fork Height||(mm)||85(or 75)|
|Max. Fork Height||(mm)||200(190)|
|Load Roller||(mm)||Tandem 82x70, Single 82x93, Nylon, Polyurethane|
|Steering Wheel||(mm)||200x50(Nylon, polyurethane or Rubber)|
Special fork length available, 800mm, 950mm, 1000mm, 1500mm, 2000mm
packing list: 2300*550*750/2300*700*730mm ,
by sea & trucks , 112UNITS FOR 20’C ,188 UNITS FOR 40’C ,
HS CODE: 8716 8000 00
