Steel Yellow Compact Wheel Loader , Articulated Backhoe Loader High performance

Basic Information
Place of Origin: china
Brand Name: M&D
Certification: CE ISO
Model Number: ZL30-636
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: nude
Delivery Time: 15-20 days
Supply Ability: 200 set per month
Detail Information
Color: Customised Engine: Cummins,weichai
Transmission: Automatic Dumping Height: 3200mm
Tyre: 23.5-25 Application: Building
High Light:

back hole loader


tracked backhoe loader


CE approved Articulated Backhoe Loader

Product Description

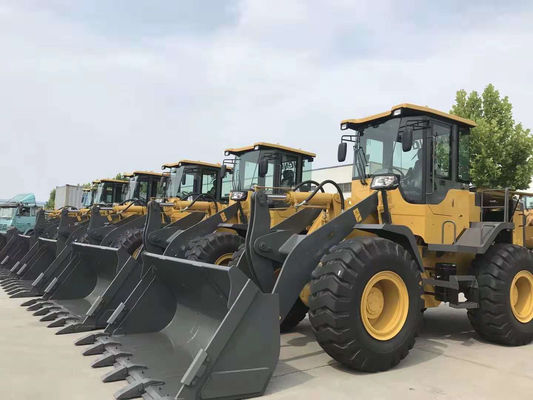

Steel Yellow Compact Backhoe Wheel Loader , Articulated Backhoe Loader


Main Features


1. High performance engine is adopted for strong power, low fuel consumption, low noise and reliability.
2. Double turbine hydraulic torque converter could make full use of engine power to increase the torque, contributing to overall large traction force. Power shift planetary gearbox that used for 5 ton loaders is adopted for high transmission efficiency and long service life.
3. New type reinforced drive axles are adopted for large bearing capacity and high reliability. Reasonable distribution on front and rear axles ensures overall stability.
4. Joystick and large displacement working pump contribute to easy operation.
5. Articulated frame features flexible steering, good passing ability, large bearing capacity and good stability.



Technical Parameters
Bucket capacity(m³) 1.2~3.0 (standard bucket 1.8)
Overall dimension(L*W*H)(mm) 7008*2520*3222
Rated load (kg) 3000
Max. traction force(kN) ≥100
Wheel tread(mm) 1850
Dump distance(mm) 1040
Min. turning radius (outer side of the bucket) (mm) 5950
Steering angle (°) 38
Overall operating weight (kg) 10140
Max. breakout force(kN) ≥100
Wheel base(mm) 2850
Dump height(mm) 2960
Total cycle time(s) ≤9.2
Max. speed(km/h) 40
Departure angle(°) 30












































M&D brand wheel loader is a most popular  loader in Chinese market. We began to produce wheel loaders since 2006. our wheel loader has very good performance and reliability after 10 years experience. Now this model is exporting to South America, South east Asia, North Africa, Middle east markets. And we also export some to USA and European markets. This model can compare to caterpilar 950H loader with more competitive price.

1 All-around visibility. High-strength integral framework is used for cab, which ensures high security. Good seal & shock absorption effect , quality seat and optional A/C provide the users with comfortable operating environment.

2. The optimal matching of energy-saving engine, efficient torque converter and hydraulic system contributes to excellent energy efficiency.

3. New type reinforced drive axles are adopted for large bearing capacity and high reliability. Reasonable distribution on front and rear axles ensures overall stability.

4. Reinforced box type articulated structure increases steering angle and reliability, contributing to flexibility.

5. Working devices are optimized. High-strength wear-resisting cutting edge is used on bucket, increasing the wear resistance.

6. Low pressure and wide base tyres are adopted for exceptional off-road ability and passage capacity, adapting to various road conditions.


Bucket size
Tyre size
Rated load
Dumping height
Operation weight
Max. travelling speed
Engine model
Cummins 6CTA8.3
Control system
Engine power
A/C cabin
ZL50 planet type
Alarm light
Service brake
dry type caliper brake
Operation manual
Parking brake
Hand brake
Parts list



1. Self produced front and rear frames, heat treatment with high rigidity
2. Powerful engine with global warranty and parts service
3. Competitive price with high performance
4. Real warranty supplied by original manufacturer

5. More than 10 years experiences

6.China Construction Machine 5ton Front Wheel Loader for Sale


wheel loader 11.jpg

wheel loader 14.jpg


wheel loader 15.jpg
