Energy Saving Forklift Reach Truck , 7 Ton Material Handling Forklift

Basic Information
Place of Origin: CHINA
Brand Name: M&D
Certification: CE ISO
Model Number: FD70
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: nude
Delivery Time: 15-20days
Supply Ability: 200 sets per month
Detail Information
Max Lift Height: 7000mm Color: Customised
Tyre: Pneumatic Solid Mast: 2stage/3satge
Transmission: Automatic Turning Radius: 2240mm
Load Centre: 500mm
High Light:

diesel operated forklift

,

four wheel drive forklift


Product Description

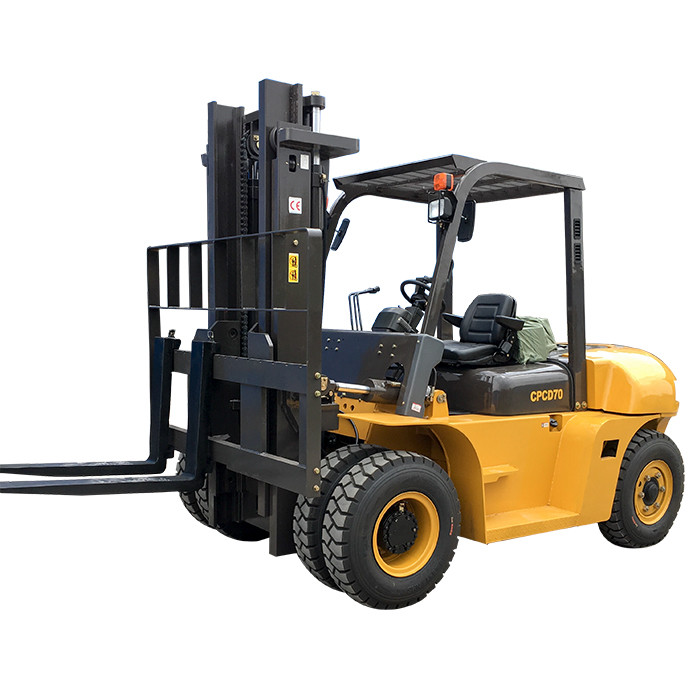

7 ton ISUZU energy saving engine diesel powered forklift yellow color turning radius 2240mm with CE certificate​





Our High quality fork lift diesel 7 ton forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.



Features 1 Manufacturer     M&D
2 Model     FD70T
3 Load capacity   kg 7000
4 Load center   mm 600
5 Power unit     Diesel
6 Operator type     Driver/seat
7 Tire type     Pnenumatic
8 Wheel Front/rear   4/2
Dimension 9 Max. lifting height   mm 3000
10 Free lift   mm 210
11 Fork size L*W*T mm 1220*150*65
12 Tilt range Mast forward/backward deg 6/12
13 Overall length(without fork)   mm 3590
14 Total width   mm 1995
15 Mast height (fork lowering)   mm 2500
16 Overall height fork raised With backrest mm 4420
17 Height to head guard   mm 2450
18 Turning raduis(outside)   mm 3360
19 Front face of fork to front axle   mm 620
20 Min. right angle stacking aisle pallet size :1100×1100 add clearence mm 5620
Performance 21 Speed Max Travelling full/no load km/h 26/30
22 Lifting full/no load mm/s 450/550
23 Lowering full/no load mm/s 450/500
24 Max.drawbar pull full/no load kg 5400/2200
25 Gradeability at 1.6km/h full load % 29
  Max. Gradeability full/no load % 33/19
Weight 26 Truck weight   kg 9450
27 Weight distribution Full load front/rear kg 14520/1930
28 No load front/rear kg 3760/5690
Frame 29 Tires Number front/rear 4/2
30 Model front axle 8.25x15-14PR
31 rear axle 8.25x15-14PR
32 Wheelbase   mm 2250
33 Tread Front/rear mm 1470/1700
34 Ground clearence At lowest point(mast) mm 190
Frame mm 230
35 Brake Service brake   power brake
Parking brake   Mechanical-hand lever
Engine 36 Battery Voltage/capacity V/AH 2x12V-80AH
37 Engine Model   ISUZU 6BG1
Rated power kw/rpm 82.3/2000
Rated torque N-m/rpm 418/1500
Number of cylinders   6
Displacement L 6.494
Fuel tank capacity L 140
38 Transmission shift stage(front/rear-type)   2-2 automatic
39 Operating pressure Hydraulic system pressure kg/cm² 200




Energy Saving Forklift Reach Truck , 7 Ton Material Handling Forklift 0



Energy Saving Forklift Reach Truck , 7 Ton Material Handling Forklift 1

Standard Configuration of our 2ton 3ton 4 ton Diesel Forklift Truck

1.Chinese Engine

2. Hydraulic / Automatic Transmission

3. Duplex Mast Lifting Height 3000mm

4. Pneumatic Tires

5. 1070mm Fork Length

6.Toyota seat

7.The casting-type steering brige (makes forklift more stable and the performance more reliable)

8.Large flow air filter with high instake, which effectively reduce the resistence and dust into

engine,improving engine life.

9.Shimadzu pump and valve, Eaton pipe, Nok hydraulic cylinder seals

10.A set of spare parts ,and some quick -wearing parts free for you





Optional Equipments

1.Janpan engine ISUZU or Mitsubishi,EPA koller engine ,Euro III engine are optional.

2.Lifting Height 3m-7m

3.Full-free Duplex or Triplex Mast

4.Side Shift, Solid Tires, Suspension Seat, fork positiner .

5.Driver's Cabin, Customized Color, air-conditioner, etc.

6.Attachments :paper roll clamp,bale clamp ,rotating clamp ect.

Energy Saving Forklift Reach Truck , 7 Ton Material Handling Forklift 2
