| Place of Origin: | CHINA |
|---|---|
| Brand Name: | M&D |
| Certification: | CE ISO |
| Model Number: | FD40 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | nude |
| Delivery Time: | 15-20days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 200 set per month |
| Max Lift Height: | 7000mm | Color: | Customised |
|---|---|---|---|
| Tyre: | Pneumatic Solid | Mast: | 2stage/3satge |
| Transmission: | Automatic | Turning Radius: | 2240mm |
| Load Centre: | 500mm | ||
| High Light: | material handling forklift,electric warehouse forklift |
||

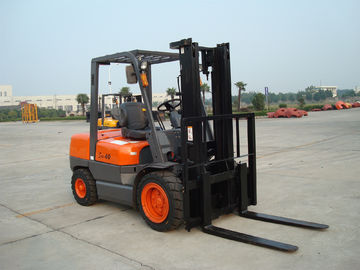

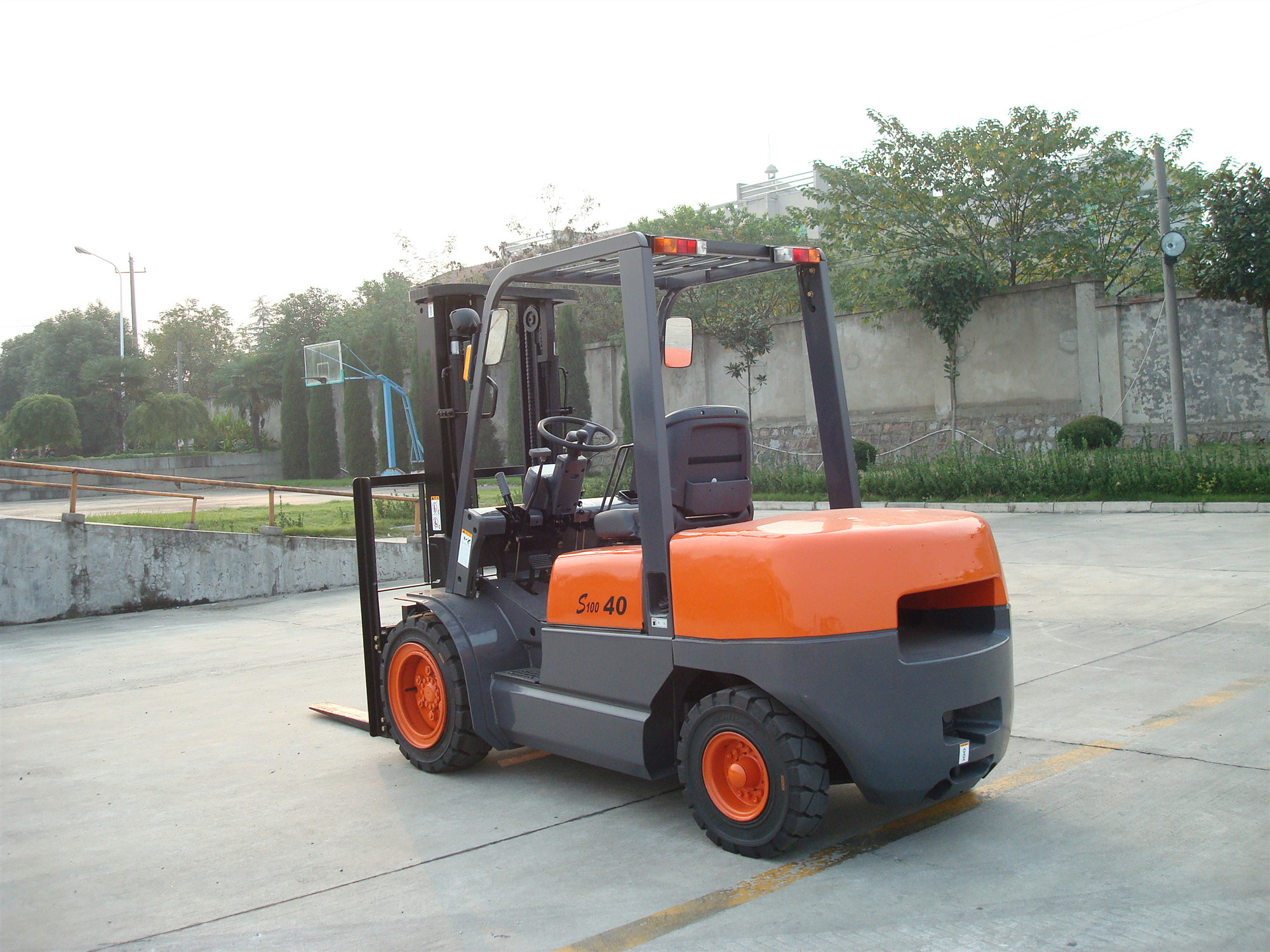

4 ton ISUZU energy saving engine diesel powered forklift yellow color turning radius 2240mm with CE certificate
Our High quality fork lift diesel 4 ton forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
Feature:
1. Operator`s front view is improved through lowering the dashboard;
Vibration is reduced with suspended cab (overhead guard);
2. Super comfortable. All with comfortable driving space,adjustable steering wheel and seats,super low and non-slip step,suspension steering axle,storing space.
3. High Security.Whole perspective mast and backrest, super good view,high strength overhead guard,high place security combination lamp,neutral security features,parking brake,fork lock function(optional),all for safety.
4. A kind of benefits diesel forklift,owns high cost performance.
| Features | 1 | Manufacturer | M&D | ||
| 2 | Model | Power shift T/M | FD40T | ||
| Manual shift T/M | FD40C | ||||
| 3 | Load capacity | kg | 4000 | ||
| 4 | Load center | mm | 500 | ||
| 5 | Power unit | Diesel | |||
| 6 | Operator type | Driver/seat | |||
| 7 | Tire type | Pneumatic | |||
| 8 | Wheel | Front/rear | 2/2 | ||
| Dimension | 9 | Max. lifting height | mm | 3000 | |
| 10 | Free lift | mm | 150 | ||
| 11 | Fork size | L*W*T | mm | 1070*150*50 | |
| 12 | Tilt range | Mast forward/backward | deg | 6/12 | |
| 13 | Overall length(without fork) | mm | 2870 | ||
| 14 | Total width | mm | 1365 | ||
| 15 | Mast height (fork lowering) | mm | 2150 | ||
| 16 | Overall height fork raised | With backrest | mm | 4250 | |
| 17 | Height to head guard | mm | 2140 | ||
| 18 | Turning raduis(outside) | mm | 2530 | ||
| 19 | Front face of fork to front axle | mm | 485 | ||
| 20 | Min. right angle stacking aisle without load length&clearence |
mm | 2940 | ||
| Performance | 21 | Speed | Max Travelling full/no load | km/h | 16.5/18 |
| 22 | Lifting full/no load | mm/s | 380/480 | ||
| 23 | Lowering full/no load | mm/s | 450/420 | ||
| 24 | Max.drawbar pull | Power shift T/M full/no load | kg | 2200/1000 | |
| Manual shift T/M full/no load | kg | 2200/1000 | |||
| 25 | Gradeability at 1.6km/h | Power shift T/M full/no load | % | 18/20 | |
| Manual shift T/M full/no load | % | 18/20 | |||
| Weight | 26 | Truck weight | kg | 5050 | |
| 27 | Weight distribution | Full load front/rear | kg | 7890/1140 | |
| 28 | No load front/rear | kg | 1810/3240 | ||
| Frame | 29 | Tires | Number | front/rear | 2/2 |
| 30 | Model | front axle | 250-15-16PR | ||
| 31 | rear axle | 6.50-10-10PR | |||
| 32 | Wheelbase | mm | 1800 | ||
| 33 | Tread | Front/rear | mm | 1120/970 | |
| 34 | Ground clearence | At lowest point(mast) | mm | 120 | |
| Frame | mm | 135 | |||
| 35 | Brake | Service brake | Hydraulic-foot pedal | ||
| Parking brake | Mechanical-hand lever | ||||
| Engine | 36 | Battery | Voltage/capacity | V/AH | 12/80 |
| 37 | Engine | Model | ISUZU 4JG2 | ||
| Rated power | kw/rpm | 44.8/2450 | |||
| Rated torque | N.m/rpm | 186/1800 | |||
| Number of cylinders | 4 | ||||
| Placement | L | 3.059 | |||
| Fuel tank capacity | L | 70 | |||
| 38 | Transmission | Speed forward/backward | Power shift T/M Manual shift T/M | 1-1 power shift T/M 2-2 manual shift T/M | |
| 39 | Operating pressure | Hydraulic system pressure | kg/cm² | 180 | |
We supply full range Forklift Trucks
Diesel Forklift: 1.5ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton, 7.5 ton, 8 ton, 10 ton
Gasoline/Lpg Forklift: 1.5 ton, 1.8 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton
Electric Forklift: 1 ton, 1.5 ton, 1.8 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton
Heavy Duty Forklift: 12 ton, 13ton, 14ton, 15ton, 16ton, 18ton, 20ton, 25ton, 32ton, 46 ton
Electric Stacker, Electric Pallet Truck
Full-electric Stacker: Loading Capacity 1000kg, 1200kg, 1400kg, 1600kg, 2000kg
Electric Pallet Truck: Loading Capacity 1500kg, 2000kg, 2800kg, 3000kg, 3500kg.
