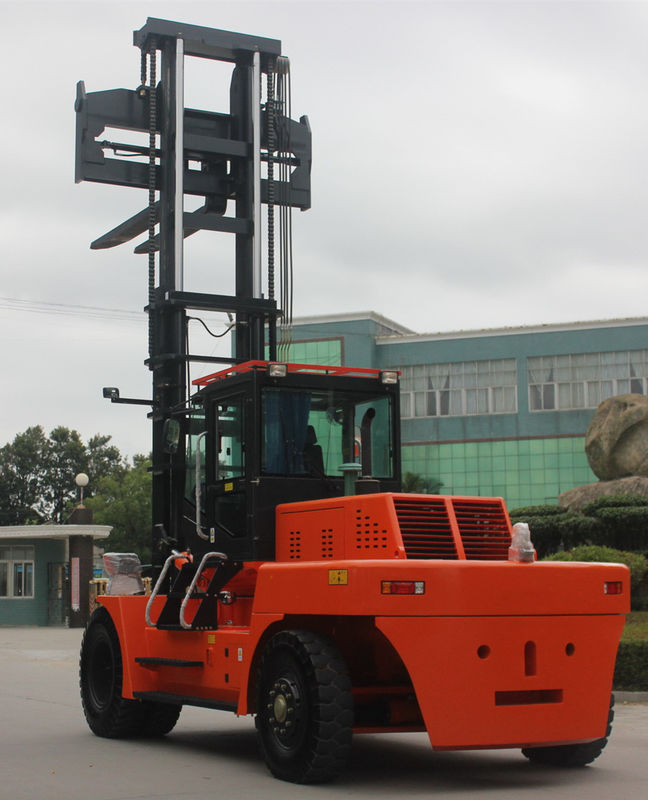

Automatic Compact Forklift Trucks , Powerful 16 Ton Industrial Lift Truck

Automatic Compact Forklift Trucks , Powerful 16 Ton Industrial Lift Truck
Automatic Compact Forklift Trucks , Powerful 16 Ton Industrial Lift Truck Automatic Compact Forklift Trucks , Powerful 16 Ton Industrial Lift Truck

Large Image :  Automatic Compact Forklift Trucks , Powerful 16 Ton Industrial Lift Truck Get Best Price

Product Details:

Place of Origin: CHINA
Brand Name: M&D
Certification: CE ISO
Model Number: FD150

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: nude
Delivery Time: 15-20days
Detailed Product Description
Max Lift Height: 7000mm Color: Customised
Tyre: Pneumatic Solid Mast: 2stage/3satge
Transmission: Automatic Turning Radius: 2240mm
Load Centre: 500mm
High Light:

lifted diesel trucks

,

four wheel drive forklift

16 ton energy saving engine diesel powered forklift yellow color turning radius 5800 mm with CE certificate



1. adopt Cummins, Weichai, Yuchai turbocharging engine, powerful, energy conservation, environmental protection, satisfies the requirement of high efficiency operation.

2 use Hangchi, Sanchi planet type hydraulic power shift transmission, big traction in combined operating condition, the transmission system more reliable.

3  adopt double turbine hydraulic torque converter, stepless speed change, single lever control for the speed changing, easier for operation.

4  Variable speed control valve matched with neutral starter, the machine start more secure.

5  front axle adopt heavy duty type driving axle, enlarge size of axle housing, hub and bearing, spiral bevel gear and wheel planetary wheel deceleration increasing twist, steel structure bridge shell support, increase the load capacity and service life.

6  No spokes plate type rim, increase the bearing capacity of hub.

7  rear axle by transverse hydraulic cylinder type steering, steering axle has compact structure, transmission angle is 70.5   help to reduce the resistance and reduce tire wear and improve the driving comfort.

8  using four heavy caliper disc brake, thicken brake disc, the rear air tank, 18 times braking pressure strength ratio, heat dissipation faster, reliable and safe operation

9  hydraulic load sensing steering system, rear steering axle with small turning radius, flexible and light steering

10  adopt double pump confluence working hydraulic system, greatly reduce fuel consumption, energy consumption. Hydraulic system equipped with oil radiator and back pressure protection device, ensure the machine heat balance

11 using speed limit valve and pressure selector valve, reduce the hydraulic system impact, can lower the mast to the ground when engine flame out

12 cooperate with hercynian institute of Chinese Academy of Sciences "overall structure optimization scheme", verifies the stiffness and strength calculation, fatigue life forecast on the forklift, comprehensive finite element mechanics analysis, structure design optimization, ensure the security of the products use

12.1 adopt long wheelbase, box double beam frame, can provide good rigidity and strength, to ensure the high reliability of forklift truck chassis

12.2 inner and outer mast adopt roller operate, the door frame with roller, movable block energy structure, long service life of the mast, high reliability

12.3 mast lifting height can be up to 3 meters, high mast, low mast, standard mast and a variety of accessories can be fitteed according to customers’ requirements

12.4 adopted quick hitch shelf, change quickly. Hydraulic fork positioner, easy to adjust. Cascade high strength fork, more wear-resisting, can multiply service life

13 with massive deepen heavy forklift tire, rear steering axle can swing around the center, have good traction performance and passing performance.

14 matched with adjustable direction, airline seats, joystick control distributing valve and working device, flexible and convenient manipulation

15 using domestic high quality electrical components, maintenance-free battery, the wire resistance of flame retardant materials, reliable and durable. Cabin matched wiht fan, radios, air conditioner, reversing display, can match with weighting machine according to customers’ requirements.

16 the whole machine is beautiful and smooth. Luxury wide view cabin, along with the skylight, low noise, good sealing

17 domestication parts, standardization, cost-effective, parts commonality good easy procurement, daily maintenance is simple and quick.

18 widely used in airports, ports, docks, stations, warehouses and other big working intensity occasions for loading and unloading, stacking and short-distance transportation





Parameters







  • Configuration Model CPCD160
    FD-160
    Performance Rated load kg 16000
    Load center mm 900
    Mast tilt angle (front/rear) o 6/12
    Overall dimensions Length mm 7645
    Width mm 2750
    Height mm 3625
    Mast lifting height mm 3500
    Fork size (L*W*H) mm 1800*180*90
    Min. turning radius mm 5800
    Max. travel speed (unload) km/h 30
    Lifting speed (with load) mm/s 300
    Gradeability (with load) % 20
    Weight kg 23000
    Tyre Front   4*12.00-24/18PR
    Rear   2*12.00-20/18PR
    Wheel tread Front mm 2060
    Rear mm 2330
    Wheelbase mm 3800
    Min. ground clearance mm 265
    Engine Model   YC6A175Z-T20
    Rated power/rotate speed Kw/r.pm 128/2200
    Max. torque / rotate speed N.m/r.pm 650/1500



Automatic Compact Forklift Trucks , Powerful 16 Ton Industrial Lift Truck 0







Standard Configuration of our 2ton 3ton 4 ton Diesel Forklift Truck

1.Chinese Engine

2. Hydraulic / Automatic Transmission

3. Duplex Mast Lifting Height 3000mm

4. Pneumatic Tires

5. 1800mm Fork Length

6.Toyota seat

7.The casting-type steering brige (makes forklift more stable and the performance more reliable)

8.Large flow air filter with high instake, which effectively reduce the resistence and dust into

engine,improving engine life.

9.Shimadzu pump and valve, Eaton pipe, Nok hydraulic cylinder seals

10.A set of spare parts ,and some quick -wearing parts free for you


Automatic Compact Forklift Trucks , Powerful 16 Ton Industrial Lift Truck 1


Optional Equipments

1.Cummins engine  or ISUZU engine ,Euro III engine are optional.

2.Lifting Height 3m-7m

3.Full-free Duplex or Triplex Mast

4.Side Shift, Solid Tires, Suspension Seat, fork positiner .

5.Driver's Cabin, Customized Color, air-conditioner, etc.

6.Attachments :paper roll clamp,bale clamp ,rotating clamp ect.
