Explosion Proof Electric Forklift Truck 1070mm Fork Length 3000mm Max Lifting Height

Basic Information
Place of Origin: Made in China
Brand Name: M&D
Certification: CE,ISO
Model Number: CPDYJ30-FB
Minimum Order Quantity: 1
Price: Negotiated
Packaging Details: Export Standard Package
Delivery Time: 3-20days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500Units/Month
Detail Information
Product Name: 2.5Tons Explosion Proof Electric AC Power Forklift With Lifting Height 3000mm Fork Length: 1070mm
Overall Dimensions: 3570*1300*2310mm Max Lifting Height: 3000mm
Max Travel Speed: 11km/h Battery: 70v/550Ah
Motor: Ac Driving Motor Wheel Base: 1540mm
High Light:

electric stacker truck


battery forklift truck

Product Description

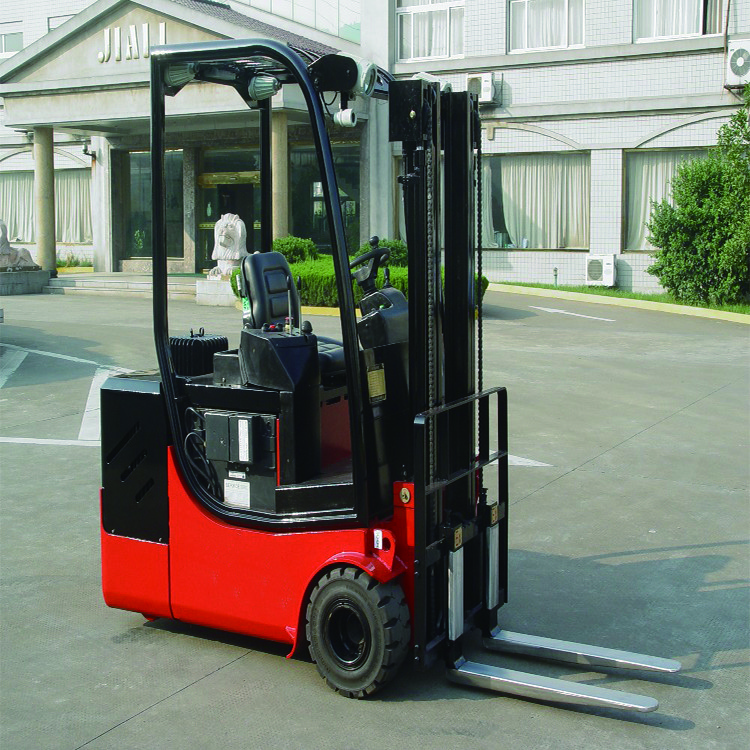

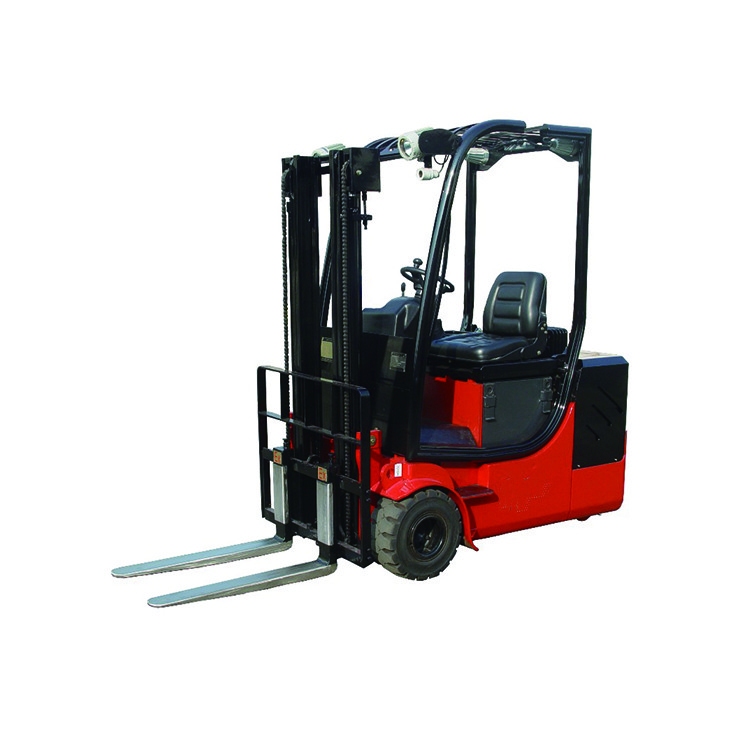

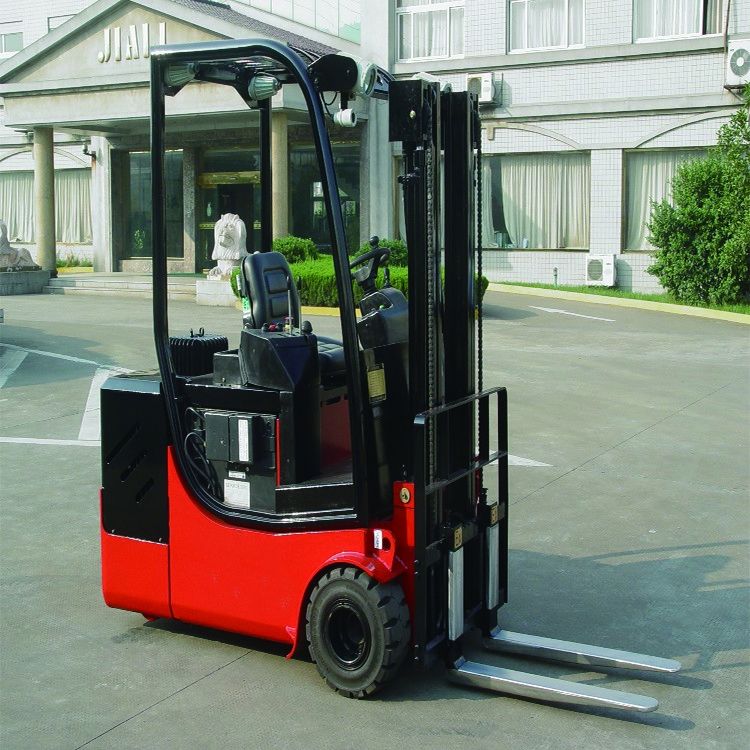

2.5 Tons Explosion Proof Electric AC Power Forklift With Lifting Height 3000mm



Product Description
2.5Tons Explosion Proof Electric AC Power Forklift With Lifting Height 3000mm





Rated lifting capacity kg 1000 1500 2000 2500 3000
Load centre mm 500
Max. lifting height mm A 3000
Tilt angle for ward/backward degree D-E 4-10 6-10
Max.lifting height(laden) mm/s 230 210
Max. travel speed(laden) km/h 11
Gradeability % 15 10
Overall Dimensions Length mm I 3000 3570
Width mm L 1150 1300
Height mm K 2170 2310
Height at Mast mm M 2050 2130
Fork Length mm G 920 1070
Wheel Base mm J 1250 1540
Tread Front Wheels mm N 890 990
Rear Wheels mm O 870 1014
Min.Underclearance mm 105
Fork Overkang mm 435 480
Min. outside turning radias mm R 1890 2300
Min.right angle stacking aisle width mm P 3445 4050
(Include safety spacing 200)
Battery Voltage Rated V 48 70
Capacity Ah 400 550
Electric Motors Rated Output kw 7.5 12
Tyres Model Front Wheels   6.50-10 28×9-15
Rear Wheels   5.00-8 21×8-9
Service Weight kg 2950 3050 4260 4550 4750
Explosion-proofgrade Exdes ⅡBT4 Gb/ DIP A21 TA,T4 /ExdesⅡC T4 Gb
Certificate Explosion-proof certificate,Type test certificate, CE certificate
Explosive areas 1&2 zone and 21&22 zone
Explosive gas Group IIB and IIC
Temperature Grade 135C (T4)
Certificate authority China National Quality Supervision and Test Centre for
Explosion Protected Electric Products(Nanyang, China)






l Patented invention product, which is safe and eco-friendly new one.

l System with explosive-proof AC single motor, reaching advanced international standards.

l Explosiveproof circuit design for the complete machine, using heat protective system, insulation monitoring system and oberload protective system etc. high intelligentization, high enplosive-proof reliability.

l Hydraulic-wet brake, no-spark and no local temperature rising by braking.

l Using jacklight of cold light source and signal lamp for complete machine, low temperature rising, reliable explosive-proof performance.

l The complete machine owns the advantages of easy operation, high sensitivity, reliable performance and so on.

l Green motor without maintenance, low cost of maintenance.

l Explosion proof sign: Ex sdeⅡB T4/ Ex desⅡC T4 Gb / DIP A21 TA,T4. It can be applied into explosive gas environment 1&2 zone and non-conductive powder zone, such as petrochemical, paper making and painting, etc, dangerous working zones.




Japan SAUER double displacement hydraulic motor (original Japanese Daikin)

Domestic famous brand explosion-proof special type power supply unit

AC-controller(CURTIS USA)

Domestic famous brand explosion-proof AC motor

Germany BARTEC Ex-switch,Ex-motor switch


Our Services

Warranty period : One year or 2000 working hours
