| Place of Origin: | China |
|---|---|
| Brand Name: | M&D |
| Certification: | CE,ISO |
| Model Number: | CDD16 - 920 |
| Minimum Order Quantity: | 1 |
| Price: | negotiable |
| Packaging Details: | Export Standard Package |
| Delivery Time: | 3-20days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500units/month |
| Color: | Customised | Master Type: | 2-Stage STD |
|---|---|---|---|
| Operating Type: | Walkie / Stand On | Controller: | Curtis |
| Battery: | 24V/280AH | Drive Motor: | AC 1.5kw |
| High Light: | pedestrian pallet stacker,pallet stacker truck |
||

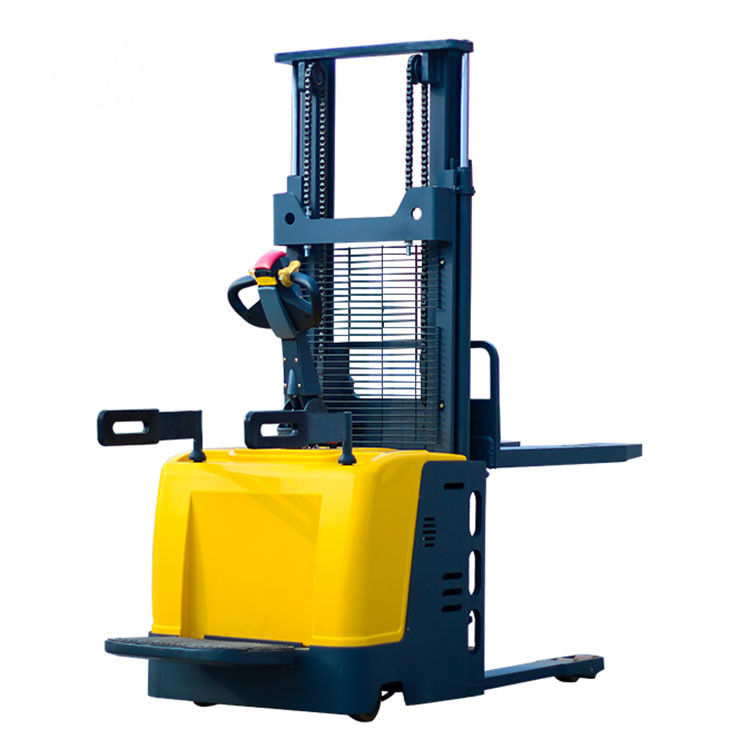

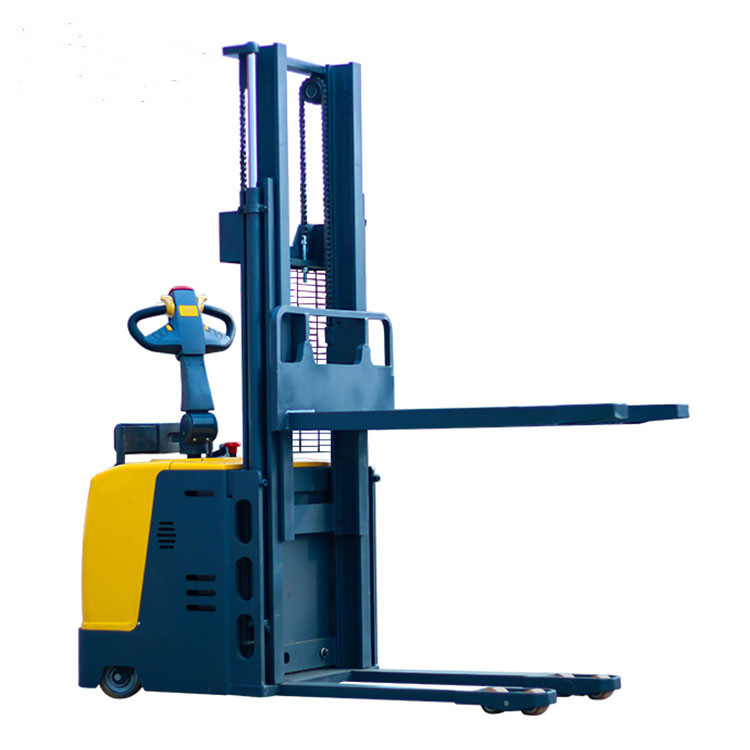

1.5 2 Ton 5M Electric lifting Low noise Save energy Wide ligs handle heavy loads forklift Pallet reach Stacker with CE
Performance
1. The innovative AC system offers strong power, accurate control, excellent performance.
2. High strength vertical gearbox, longer working life.
3. Low-noise but durable hydraulic unit, good quality cylinder as well as hose ensure the high realiability of hydraulic system.
4. AMP connecter electric wires and cables, greatly reducing electric parts failure rate.
5. High strengh chassis enhances the reliability and durability of the truck.
6. Standard featured tilt mast cylinder design and controller montoring the tilt speed smoothly and ensures safe performance.
7.Heavy duty load wheel ensures stability.
8. Compact design with small turning radius requirements.
| Manufacturer | M&D | ||
| Feature | |||
| 1 | Model | CDD15-920 | |
| 2 | Type | Forkover | |
| 3 | Mast type | 2-Stage STD | |
| 4 | Load capacity | kg | 1500 |
| 5 | Load center | mm | 600 |
| 6 | Wheel base | mm | 1310 |
| 7 | Operating type | Walkie / Stand On | |
| Wheels | |||
| 8 | Wheels type | PU | |
| 9 | Wheels quantity | 1D / 2B / 4F | |
| Demension | |||
| 10 | Standard lift height | mm | 3000/3300/3500/3600/4000 |
| 11 | Lowered fork height | mm | 55 |
| 12 | Fork size(length/width/thickness) | mm | 1200/ 2005/2425 |
| 13 | Overall length | mm | 2005/2425 |
| 14 | Overall width | mm | 1470 |
| 15 | Max extend height | mm | 3500/3800/3900/4100/4500 |
| 16 | Mast lowered height | mm | 1980/2135/2285/2335/2500 |
| 17 | Min.Turning radius | mm | 1565/1975 |
| 18 | Min.Aisle width for pallets 1200×1200 | mm | 2260/2585 |
| 19 | Min.Aisle width for pallets 1000×1200 | mm | 2260/2585 |
| 20 | Min.ground clearance | mm | 50 |
| Performance | |||
| 21 | Travel speed,laden/unladen | km/h | 5/5 |
| 22 | Lift speed,laden/unladen | mm/s | 130/230 |
| 23 | Travel speed,laden/unladen | mm/s | 130/230 |
| 24 | Gradeability,laden/unladen | % | 5/7 |
| Electrical configuration | |||
| 25 | Drive motor | KW | AC 1.5 |
| 26 | Lift motor | KW | DC 3.0 |
| 27 | Steering motor | KW | DC 0.15 |
| 28 | Battery voltage | V | 24 |
| 29 | Battery capacity | Ah | 280 |
| 30 | Brake | Electromagnetic / Regenerative | |
| 31 | Controller | CURTIS | |
| Weight | |||
| 32 | Battery weight | kg | 235 |
| 33 | Service weight with battery | kg | 1370 |
Advantage:
1,EPS – Electric Power Steering System,Operation force light,Save energy,Low noise.
2.Durable and rigid frame construction ensure the stackers to handle heavy loads.
3.Hourmeter and BDI(Battery Discharge Indicator)on time informs the operator of recharge requirements.
4.Power sylinder prevents wheels slip.
5.Tilter head ergonomically designed for maximum opertor comfortable,and control buttons positioned to allow operation with either hand.
6.limit switch mounted on top of mast to precisely set the max.Lifting height,avoid any risk of lifting motor overload.
7.Robust and rigid mast configuration optimize stackers lifting stability and safety.
8.Vertical drive system,Driving floating adjustable system design.
9.Wide ligs
10. handling equipments
Mast Options :
Safety
1. Safe hydraulic system design prevents mast from falling down abruptly when dydraulic pipeline cuts off.
3. Emergency reverse belly button protects the operator from getting hurt.
4. Emergency disconnector will cut off power source and avoid accident when trucks goews out of control.
5. Multiple lifting limit protection ensures safety.
6. Automatic switch to lower speed when the fork reaches its setting height.
7. Anti-rolling back brake keeps the truck from skidding down when truck is out of control or travelling on ramp.
8. Long aside tiller reduces operator’s hazards.
Operation
1. With the new design of ergonomical tiller head, all buttons are controlled conveniently & comfortably.
2. Long tiller reduces steering force greatly.
3. Adjustable forks, suitable for complicated pallets or cargos.
4. Tilting as standard configuration, make operation easier.
5. Side-open battery design for easy battery replacement and various applications.
Maintenance
1. AC traction motor, maintenance free.
2. Hour meter and batter indicator will remind the operator to recharge the battery.
3. Easily remove the back cover by only loosing four bolts; Access to all key components for inspection, maintenance and replacement.
4. Press-on load wheel reduces the maintenance cost.
5. Vertical motor makes the inspeciton & service much more convenient.
6. Control system allows easy trouble-shooting.
7. Mast and chassis are assembled together, easy for maintenance.
8. Low voltage cut off setting protects batteries.
