| Place of Origin: | china |
|---|---|
| Brand Name: | M&D |
| Certification: | CE ISO |
| Model Number: | LD-01 |
| Minimum Order Quantity: | 1 |
| Price: | negotiable |
| Packaging Details: | nude |
| Delivery Time: | 15-20 days |
| Supply Ability: | 200set per month |
| Max Lift Height: | 4011mm | Tyre: | Pneumatic Tires Solid Tires |
|---|---|---|---|
| Color: | Customised | Warrant: | 5 Year |
| Battery: | 80/500V/AH | ||
| High Light: | material handling forklift,electric warehouse forklift |
||
1.5 2.5 3.5ton Lithium battery fast charged zero emission low noise no corrosion electric forklift
Product Feature:
(1)Environment Friendliness
Zero emission
Low noise
Free of heavy metals
No corrosion
No acid mist volatilization
(2)Maintenance Free
Unnecessary of fluid adding and dust proofing
Daily maintenance free
Manual maintenance free
(3)Long Service Life
Over 75% capacity reserved after 4000 shifts operation
Longer service life than lean-acid battery in equal working condition
5 years or ten thousand hours quality guarantee for high performance
(4)High Efficiency and Energy Saving
2 hours charging meet 6-8 hours working demand
High-energy density, self discharging rate lower than 1% per month,
95% energy conversion rate,superior charging and discharging performance
Flexible to charge,easy to operate,no impact on battery life
Unnecessary to change battery,cost saving
(5)Suitable for working in both high and low environment
Lithium battery is better than lead-acid battery when working between -25℃and 55℃
(6)High safety
According to the characteristics of industrial vehicles,it achieces safety protection design which includes lithium battery materials,battery core type,pack technique and system power management
“Multiple node safety closed circuit protection” realizing truck real time closed circuit protection in variable conditions
“ lock affirming” function during charging avoiding “hot connecting and disconnecting” operation effectively
“whole system emergency button” to disconnect the truck control system and BMS power quickly ensuring truck safety
|

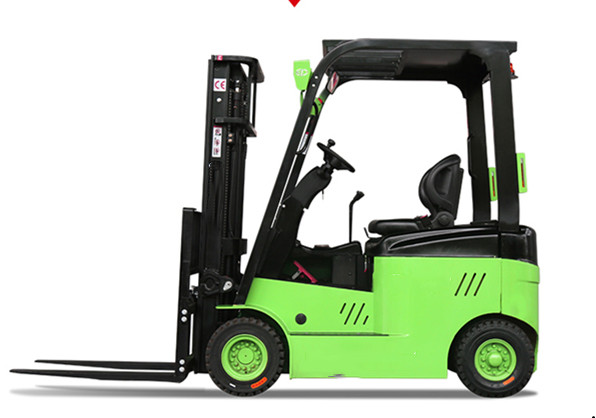

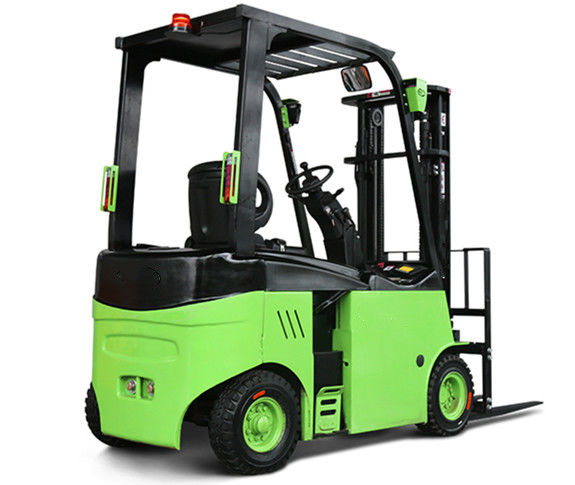

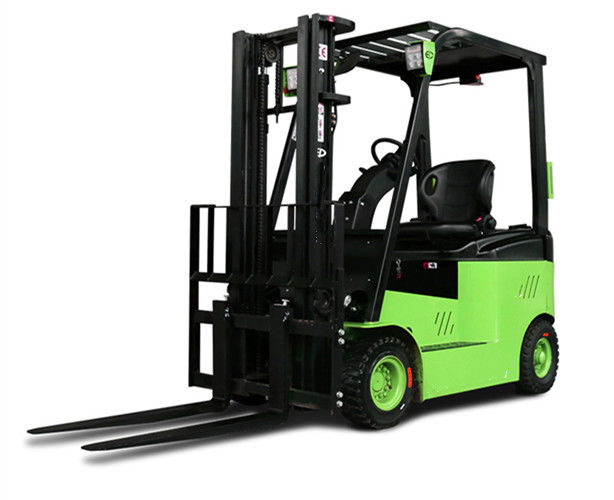

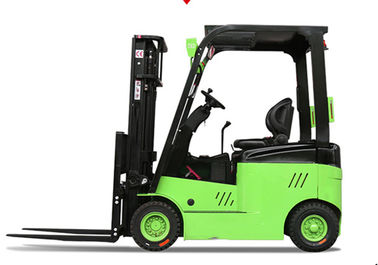

Electric Forklift
|
||||||
|
Model
|
/
|
FB15
|
FB20
|
FB25
|
FB30
|
|
|
Feature
|
Power
|
/
|
Battery
|
|||
|
Load capacity
|
KG
|
1500
|
2000
|
2500
|
3000
|
|
|
Load center
|
mm
|
500
|
||||
|
Wheel base
|
mm
|
1250
|
1450
|
1450
|
1620
|
|
|
Demension
|
Service weight
|
kg
|
2890
|
3950
|
4050
|
4900
|
|
Overall length
|
mm
|
1990
|
2310
|
2310
|
2470
|
|
|
Overall width
|
mm
|
1070
|
1170
|
1170
|
1230
|
|
|
Overall height
|
mm
|
2100
|
2150
|
2150
|
2200
|
|
|
Fork size
|
mm
|
1070
|
||||
|
Ground clearance
|
mm
|
100
|
110
|
110
|
125
|
|
|
Turning raduis
|
mm
|
1850
|
2090
|
2090
|
2330
|
|
|
Min.aisle width for pallet 1000*1200mm
|
mm
|
3460
|
3760
|
3760
|
4075
|
|
|
Power and Control
|
Drive motor
|
kw
|
8
|
11
|
11
|
12
|
|
Lift motor
|
kw
|
10
|
12
|
12
|
12
|
|
|
Battery
|
v/ah
|
48/500
|
48/600
|
48/600
|
80/500
|
|
|
Control
|
/
|
CURTIS
|
||||
1.5 to 12 ton 4-wheel counter balanced electric forklifts, Lithium battery forklifts, Li-ion batttery forklifts, dual driving motor fork lift truck.
The truck adheres to “safety”, “high efficiency”, “energy saving” and “comfort” design philosophies and it is suitable for goods handling and stacking in multi-shifts and high intensity working condition such as automobile industry, logistics industry, cold storage, drinks industry and so on.
Environment Friendliness
zero emission
low noise
free of heavy metals
no corrosion
no acid mist volatilization
Maintenance Free
unnecessary of fluid adding and dust proofing
daily maintenance free
manual maintenance free
Long Service Life
Over 75% capacity reserved after 4000 shifts operation
Longer service life than lead-acid battery in equal working condition
5 years or ten thousand hours quality guarantee for high performance lithium battery assembly
High Efficiency and Energy Saving
2 hours charging meet 6-8 hours working demand
High-energy density, self discharging rate lower than 1% per month
95% energy conversion rate, superior charging and discharging performance
Flexible to charge, easy to operate, no impact on battery life
Unnecessary to change battery, cost saving & operation safety
Suitable for working in both high and low environment
Lithium battery is better than lead-acid battery when working between -25℃ and 55℃
High safety
According to the characteristics of industrial vehicles, it achieves safety protection design which includes lithium battery materials, battery core type, PACK technique and system power management.
“Multiple node safety closed circuit protection” realizing truck real time closed circuit protection in variable conditions
“Lock affirming”function during charging avoiding“hot connecting and disconnecting”operation
“Whole system emergency button” to disconnect the truck control system and BMS power quickly ensuring truck safety
