1000Kg Load Capacity Electric Pallet Stacker , Pedestrian Pallet Stacker With Emergency Stop Switch

Basic Information
Place of Origin: China
Brand Name: M&D
Certification: CE,ISO
Model Number: CDD10
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Export Standard Package
Delivery Time: 3-20days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500units/month
Detail Information
Color: Customised Master Type: 2-Stage STD
Operating Type: Walkie / Stand On Controller: Curtis
Battery: 24V/280AH Drive Motor: AC 1.5kw
High Light:

pedestrian pallet stacker

,

high lift pallet stacker


Product Description

1000 Kg Max Load Capacity Pedestrian Pallet Stacker With Emergency Stop Switch



Detailed Product Description
Max Capacity: 1000kg Max Lift Height: 2500mm
Wheel Base: 1430mm Fork Demision: 100/40/1070mm
Load Center: 500mm Voltage And Capacity: 24v/210Ah




1 ton electric pallet stacker and electric pedestrian stacker​​



Specification



Model   CDD10-20/25
Max load capacity Kg 1000
Load center mm 500
Travel speed(load/unload) Km/h 4 / 5
Lifting speed(load/unload) mm/s 100 / 180
Fork demision mm 100/40/1070
Turning radius mm 2130
Voltage and capacity V/Ah 24/210



Advantage



CURTIS controller, ALBRIGHT contactor, AMP waterproof power connector;


Side-way battery with roll-out system is very convenient to replace batteries;


The braking system combines magnetic brake and regenerative break, greatly prolongs the using life of friction plate;


With emergency stop switch and eklectricity lock button,and multi-valve controlling levers, ergonomic for operation.

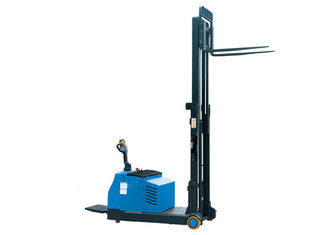

1000 Kg Max Load Capacity Pedestrian Pallet Stacker With Emergency Stop Switch















Advantage:



1,EPS Electric Power Steering System,Operation force light,Save energy,Low noise.

2.Durable and rigid frame construction ensure the stackers to handle heavy loads.

3.Hourmeter and BDI(Battery Discharge Indicator)on time informs the operator of recharge requirements.

4.Power sylinder prevents wheels slip.

5.Tilter head ergonomically designed for maximum opertor comfortable,and control buttons positioned to allow operation with either hand.

6.limit switch mounted on top of mast to precisely set the max.Lifting height,avoid any risk of lifting motor overload.

7.Robust and rigid mast configuration optimize stackers lifting stability and safety.

8.Vertical drive system,Driving floating adjustable system design.

9.Wide ligs

10. handling equipments






Mast Options :

CDD14-920 CDD14-930 CDD16-D920 CDD16-D930 .jpg
