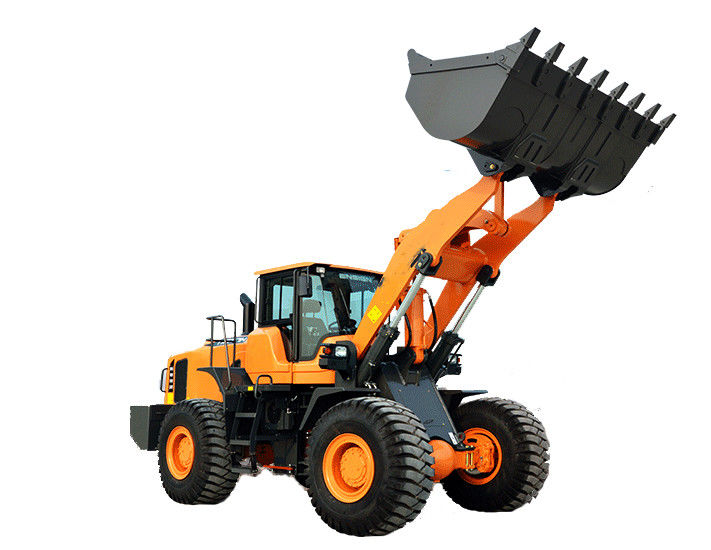

Back Loader Truck Backhoe Wheel Loader Customised Color For Building

Back Loader Truck Backhoe Wheel Loader Customised Color For Building

    • Back Loader Truck Backhoe Wheel Loader Customised Color For Building
    • Back Loader Truck Backhoe Wheel Loader Customised Color For Building
  • Back Loader Truck Backhoe Wheel Loader Customised Color For Building

    Product Details:

    Place of Origin: china
    Brand Name: M&D
    Certification: CE ISO
    Model Number: ZL60

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: nude
    Delivery Time: 15-20 days
    Supply Ability: 200 set per month
    Contact Now
    Detailed Product Description
    Color: Customised Engine: Cummins,weichai
    Transmission: Automatic Dumping Height: 3200mm
    Tyre: 23.5-25 Application: Building

    CE approved 4WD steel yellow small wheel loader ,backhoe loader,back loader truck

    Main Features



    1. Extended wheel base and large counterweight contribute to larger loading capacity. Rear mounted fuel tank increase the stability and convenience of fuel filling.
    2. Electronic control fixed shaft transmission and heavy duty axles are with high reliability and easy for maintenance.
    3. Upgraded cooling system can adapt to the work under high temperature of 50℃.
    4. Dual pump converging hydraulic system significantly reduces the fuel consumption and energy consumption.
    5. Shock absorption devices added in engine can help to reduce the vibration and noise in cab.
    6. Brake booster and brake reservoir are moved to the middle repairing area on loader’s left side, which is more convenient for maintenance.
    7. Overall design meets national mandatory noise and safety standards.
    8. Ergonomically designed cab provides all-around clear visibility and ample operating space. And full decorated inner space with A/C ensures safety and comfort.



    Technical Parameters
    Bucket capacity(m³) 3.5
    Overall dimension(L*W*H)(mm) 8725*3080*3500
    Rated load (kg) 6000
    Max. traction force(kN) ≥186
    Wheel tread(mm) 2250
    Dump distance(mm) 1250
    Min. turning radius (outer side of the bucket) (mm) 7088
    Steering angle (°) 38
    Overall operating weight (kg) 20000
    Max. breakout force(kN) ≥186
    Wheel base(mm) 3350
    Dump height(mm) 3010
    Total cycle time(s) ≤9.8
    Max. speed(km/h) 39.5/23
    Departure angle(°) 30

    •
    •






























































    M&D brand wheel loader is a most popular 5 ton loader in Chinese market. We began to produce wheel loaders since 2006. our wheel loader has very good performance and reliability after 10 years experience. Now this model is exporting to South America, South east Asia, North Africa, Middle east markets. And we also export some to USA and European markets. This model can compare to caterpilar 950H loader with more competitive price.

    1 All-around visibility. High-strength integral framework is used for cab, which ensures high security. Good seal & shock absorption effect , quality seat and optional A/C provide the users with comfortable operating environment.

    2. The optimal matching of energy-saving engine, efficient torque converter and hydraulic system contributes to excellent energy efficiency.

    3. New type reinforced drive axles are adopted for large bearing capacity and high reliability. Reasonable distribution on front and rear axles ensures overall stability.

    4. Reinforced box type articulated structure increases steering angle and reliability, contributing to flexibility.

    5. Working devices are optimized. High-strength wear-resisting cutting edge is used on bucket, increasing the wear resistance.

    6. Low pressure and wide base tyres are adopted for exceptional off-road ability and passage capacity, adapting to various road conditions.



    Bucket size
    3m3
    Tyre size
    23.5-25
    Rated load
    5000kg
    Dumping height
    3100mm
    Operation weight
    16200kg
    Max. travelling speed
    36km/h
    Engine model
    Cummins 6CTA8.3
    Control system
    joystick
    Engine power
    162kw/220hp
    A/C cabin
    Yes
    Transmission
    ZL50 planet type
    Alarm light
    Yes
    Service brake
    dry type caliper brake
    Operation manual
    Yes
    Parking brake
    Hand brake
    Parts list
    Yes



    Advantages:

    1. Self produced front and rear frames, heat treatment with high rigidity
    2. Powerful engine with global warranty and parts service
    3. Competitive price with high performance
    4. Real warranty supplied by original manufacturer

    5. More than 10 years experiences

    6. China Construction Machine 5ton Front Wheel Loader for Sale

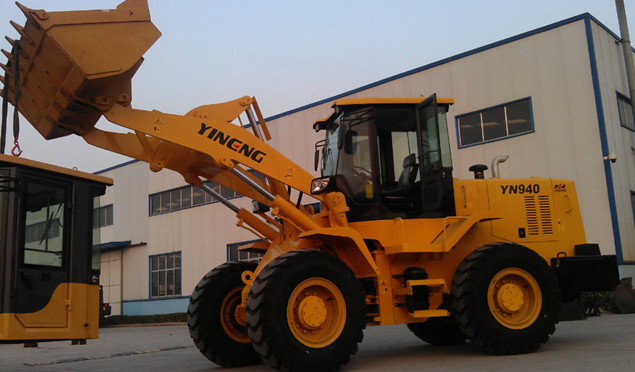

    wheel loader 11.jpg

    wheel loader 14.jpg



    wheel loader 15.jpg
